AR vs AG vs AF — Which Coating Does Your HMI Actually Need?

1、“We Added All Three Coatings — and Doubled Our Cost.” — Why More Surface Treatment Isn‘t Always Better

You’ve seen the proposal:

• AR coating: ✔

• AG coating: ✔

• AF coating: ✔

Three checkboxes. All ticked. All premium. All expensive.

The supplier says: “We recommend all three for maximum performance.”

The buyer says: “Sounds good — let‘s do it.”

Six months later, the HMI is working fine. The extra coatings? The operator can’t tell the difference. The display looks the same. The touch feels the same. The only difference is the invoice — which was 40% higher than it needed to be.

Here‘s what the supplier didn’t tell you: that HMI only needed one of those coatings. Maybe none.

Surface treatments aren‘t upgrades. They’re solutions to specific problems. If you don‘t have the problem, you don’t need the solution.

This guide tells you exactly what AR, AG, and AF actually do — and more importantly, when you can skip them.

“If you are designing a complete HMI display from scratch, make sure to read our comprehensive Industrial HMI Cover Glass Selection Guide to understand how surface treatments fit into your overall material and structural specs.”

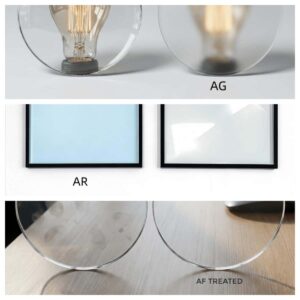

2、 What Does Each Coating Actually Do — and What Does It Cost？

Before we talk about when to use each coating, let‘s be clear about what each one actually does — and what it costs.

AR — Anti-Reflection

Key Metrics：

• Uncoated glass transmission： ~91–92%

• AR-coated glass transmission： up to 98%

• Reflection reduction： from ~8% down to <1% per surface

Where It Matters：

• Medical imaging displays

• Outdoor HMI (bright sunlight)

• High-ambient-light environments

• Applications where operators need to see fine details

Where It Doesn‘t：

• Indoor, low-ambient-light panels

• Applications where the display isn’t viewed from an angle

• Budget-sensitive projects with minimal glare issues

AG — Anti-Glare

Key Metrics：

• Gloss level： Typically 60–120 GU (gloss units) depending on the etch

• Haze level： 5–30% depending on the texture

• Surface roughness： Ra 0.05–0.3μm

Where It Matters：

• Factory floors with overhead lighting

• Operator-facing displays used for hours at a time

• High-brightness environments

• Applications where eye strain is a concern

Where It Doesn‘t：

• Applications requiring maximum image clarity (AG adds a slight haziness)

• High-resolution displays where pixel-level detail is critical

• Low-light environments where you need every bit of light transmission

AF — Anti-Fingerprint

Key Metrics：

• Water contact angle： 110–120° (higher = better oil repellency)

• Durability： Typically 5,000–10,000 abrasion cycles before performance degrades

• Thickness： 20–50 nanometers

Where It Matters：

• High-touch panels (restaurant kiosks, medical equipment, retail)

• Consumer-facing devices

• Applications where aesthetics matter (smart home panels)

• Any panel that gets touched frequently

Where It Doesn’t：

• Low-touch applications

• Panels behind a protective cover

• Industrial applications where operators wear gloves

3、🧪 Factory Floor Insight #1: Why Some Coatings Look Great in the Lab — and Fail on the Floor

We‘ve seen this more times than we’d like to admit.

A customer orders a high-performance AR coating. The supplier sends them samples. The spec sheet says: “98% transmission. Excellent durability. Ready for mass production.”

The customer approves. They order a full batch. Six months later, the coating starts peeling at the edges. The supplier says: “It was within the specification.”

The customer calls us.

What Actually Happened：

The lab test and the production floor are two different universes. Here‘s what lab tests don’t tell you — and what you should ask instead：

The Golden Rule： If a supplier can‘t show you test data from their production coating line — not their lab — they’re selling you a laboratory result that may not survive the factory floor.

4: The Coating Decision Matrix — Use This on Your Next Project

Instead of randomly selecting coatings based on the supplier‘s recommendation, use this simple decision matrix.

Step 1: Ask Your Environment

Step 2: Ask Your Touch Frequency

Step 3: Ask Your Viewing Experience

5、 The Hidden Problem With “All Three” Coatings — AR + AG + AF Stacking

We see this all the time. The supplier says: “We recommend all three for the best performance.”

Let‘s be clear: stacking AR, AG, and AF isn’t always a good idea. Sometimes it‘s actually counterproductive.

What “All Three” Actually Means：

The Real-World Impact of Stacking：

1. Diminishing returns： The first coating solves 80% of the problem. The second solves 10%. The third solves 5%. That last 5% often costs as much as the first 80%.

2. Process risk： Every additional coating adds another process step. More steps = more opportunities for defects. Rejection rates often increase with every coating layer.

3. Cost multiplier： Each coating adds 8–25% to the unit price. Two coatings can add 20–40%. Three coatings can add 35–50%. The math is not linear — it compounds.

4. Interlayer compatibility： Some AG coatings reduce the effectiveness of AF. Some AR coatings are incompatible with certain AG textures. The supplier won‘t test this unless you ask.

The Smart Buyer’s Rule：

Start with the coating that solves your biggest problem. Only add more if testing proves you need them — not because a salesperson checked all the boxes.

6、🧪 Factory Floor Insight #2: How to Spot a Coating Failure — Before It Becomes a Field Problem

We’ve seen three common coating failure modes in the field. Here‘s what they look like — and how to catch them before your customer does.

Failure #1: Coating Delamination

What it looks like： Coating lifting from the substrate — typically starts at the edges or around holes/cutouts. Creates a “peeling” effect. Sometimes invisible until the part is under magnification.

Root cause： Surface energy too low before coating application (below 38 dynes/cm), or improper curing temperature — often because the supplier didn’t prepare the surface properly.

How to catch it： Ask for cross-hatch adhesion test results from the production run, not the lab sample. Also ask for the surface energy measurement records.

Failure #2: Coating Haze / Orange Peel

What it looks like： The coating surface looks uneven — like the texture of orange peel. Diffuses light inconsistently, creating visible distortion.

Root cause： Coating layer thickness inconsistency — usually from improper spray gun settings, or uneven material flow on the production line.

How to catch it： Visual inspection under raking light (low-angle light) — standard haze or orange peel becomes immediately visible.

Failure #3: Coating Performance Degradation Over Time

What it looks like： AR loses its anti-reflection properties. AG wears down to become reflective. AF stops repelling oils — fingerprint smudges now stay on the surface.

Root cause： Coating material wasn‘t durable enough for the environment. AF wear tests were performed on the lab sample, but the production coating used a lower-cost material.

How to catch it： Ask for abrasion test results from the production coating — not the lab coating. And ask to see the test samples.

The difference between a coating supplier and a coating partner： One gives you a certificate. The other gives you data from your batch.

7、 The Real Economics — What Each Coating Actually Adds to Your Invoice

Let‘s talk about the numbers. Here’s what each coating actually adds to your project, based on real production data.

Key Observations：

1. The cost per coating is not linear. The price of adding all three is not 15% + 10% + 8% = 33%. It‘s closer to 40–50% due to process complexity, handling, and higher rejection rates.

2. Production time scales similarly. A simple AR coating adds 2–3 days. Stacking all three can add a full week.

3. Rejection rates matter. A 5% rejection rate on uncoated glass might become 8% with all three coatings. That’s 3% more parts you‘re paying for that never ship.

When It Makes Economic Sense：

8、 FAQ — Coating Questions We Get Asked Most Often

Q1: “Can AR and AG be applied to the same panel？”
A： Yes — but the process order matters. AR is applied first, then AG. AG modifies the surface texture, which slightly reduces the effectiveness of the AR. The combined effect is usually： AR performance drops from 98% to around 94–95% when AG is applied on top. You need to test this on your specific combination — not all AR and AG formulations are compatible.

Q2: “Is AF coating really necessary if operators are wearing gloves？”

A： No. If operators are wearing gloves 100% of the time, they aren‘t leaving fingerprints. Save the 8–15% and skip AF. If you have a mix of gloved and bare-hand operation, the answer is “maybe.” In that case, test the panel with both gloved and bare-hand operation and see if the smudge difference matters in your specific application.

Q3: “Can I apply coatings to both sides of the cover glass？”

A： Yes — and in fact, for AR coatings, double-sided coating is standard. The transmission improvement is on both surfaces. For AG and AF, double-sided application is not common — it’s usually applied to the outer surface only unless there‘s a specific reason to coat the inside. Double-sided coatings will increase cost and lead time.

Q4: “How long will the coating last in a harsh factory environment？”

A： That depends on the coating type, the application method, and the environment. For a factory floor with moderate cleaning, high-quality AF lasts 1–2 years before performance noticeably degrades. AR lasts longer — 3–5 years in the same environment if the coating is properly applied. AG is the most durable — it’s etched into the surface. Ask your supplier for their specific durability data for your environment. If they don‘t have it, they’re guessing.

Q5: “How much does coating affect the optical clarity of the display？”

A： AR improves clarity by reducing reflections. AG reduces clarity by adding haze — but the trade-off is glare reduction. AF has negligible effect on clarity. If your application requires absolute pixel-level clarity (medical imaging, quality inspection), avoid AG. Use AR if needed for reflections. If your application requires viewing in bright conditions with overhead lighting, AG is worth the slight clarity reduction.

Q6: “What’s the most common mistake buyers make with coating selection？”

A： Adding coatings they don‘t need. The default answer from many suppliers is “add all three.” But most applications only need one. Sometimes zero. Start with the problem you’re solving. If you don‘t have a glare problem, you don’t need AG. If your operators wear gloves, you don‘t need AF. Don’t buy coatings to feel safe — buy them to solve a specific, measurable problem.

9、Your Next Step — Buy Only What Solves Your Problem

Surface coatings aren‘t decorations. They’re solutions to specific problems.

Before your next coating decision：

1. Identify your biggest visual issue — glare？ reflections？ fingerprints？ smudges？

2. Identify your environment — bright？ dark？ overhead light？ outdoor？

3. Identify your operator touch pattern — gloved？ bare？ frequent？ occasional？

4. Match the coating to the problem — one coating for one problem. Only add more if testing proves you need them.

5. Ask for production data, not lab data — the lab doesn‘t ship with your parts.

And if you’re not sure which coating you actually need, send us your requirements. We‘ll tell you which coatings you need — and which ones you can skip.
