PC+PMMA
Composite Sheets
The structural strength of Polycarbonate fused with the optical clarity of PMMA -- engineered as a single bonded sheet for applications where neither material alone is sufficient.

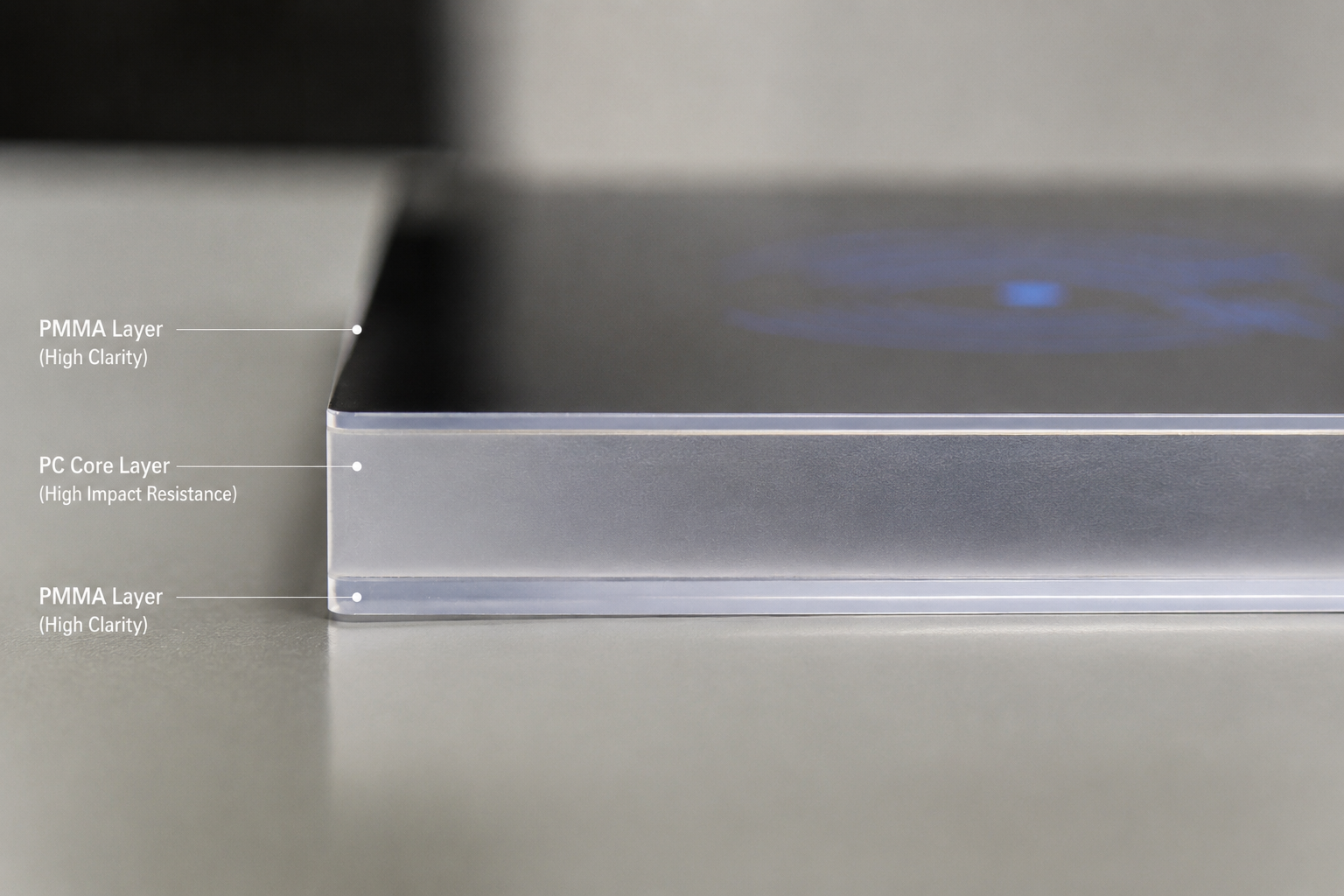

Cross-Section Anatomy
Co-extrusion bonded · No delamination risk
Why This Composite Exists -- and Why It Matters
PC alone yellows under UV and scratches easily. PMMA alone shatters under impact. The PC+PMMA composite was engineered to eliminate both failure modes simultaneously -- delivering a material that performs where single-layer plastics fail.
At Winson, we control the co-extrusion process in-house, which means we control the bond integrity, thickness ratio, and optical transmission -- not a third-party laminator.
Iris's Procurement Insight
"Most sourcing failures with composite sheets come from hidden delamination at the bond interface -- a defect that doesn't appear until field deployment. Our 100% peel-strength inspection eliminates this risk at source."
-- Iris, Partner & Chief Quality Auditor, Winson Optics
Material Performance Comparison
| Property | PC Only | PMMA Only | PC+PMMA ✦ |
|---|---|---|---|
| Impact Resistance | ✓ | ✗ | ✓ |
| Surface Hardness | 2H pencil | 3H pencil | 3H+ (PMMA face) |
| Optical Clarity | ~88% T | ~92% T | ≥90% T |
| UV Yellowing Resistance | ✓ | ✓ | ✓ |
| Thermoforming Ease | ✓ | ~ | ✓ |
| Delamination Risk | N/A | N/A | Zero (co-extruded) |
✦ Winson PC+PMMA specifications. Values vary with thickness ratio and surface treatment options.
Specifications & Customization Range
Every parameter below is adjustable within the listed range. Your drawing defines the final spec -- we engineer to it.
Dimensional Range
- Total Thickness
- 1.5 - 12 mm
- PMMA Layer Ratio
- 5% - 30% per side
- Max Sheet Size
- 2440 × 1220 mm
- Thickness Tolerance
- ± 0.1 mm
- Custom Cut Shapes
- Available (CNC)
Optical & Physical
- Light Transmittance
- ≥ 90%
- Haze Value
- ≤ 1.5%
- Surface Hardness
- 3H (pencil, PMMA face)
- Impact Strength (Izod)
- ≥ 600 J/m
- Heat Deflection Temp.
- 90 - 115°C
- Density
- 1.18 - 1.20 g/cm³
Customization Options
Color Tinting
Custom Pantone matching for PMMA layer
Hard Coating (AR/AS)
Anti-reflection or anti-static surface treatment
Silk-Screen Printing
In-house automated printing line, up to 6 colors
Dual-Side PMMA
Symmetric structure for equal-face applications
Precision CNC Machining
Holes, slots, chamfers per your technical drawing
UV Stabilizer Package
Enhanced outdoor durability, 5000h UV aging rated
Compliance & Certifications
Sector Applications
PC+PMMA composites are specified across industries where display clarity meets physical durability requirements.

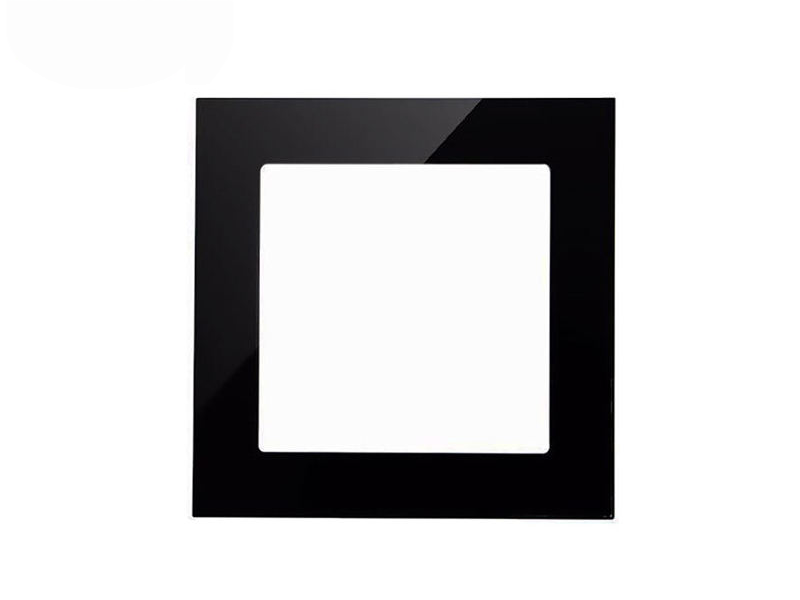

Touch Control Panels
HMI panels, wall-mount smart controllers, thermostat covers -- requiring a pristine optical surface that resists daily fingernail contact.
Diagnostic Equipment Covers
Patient monitor front panels, portable diagnostic device housings -- where chemical disinfectant resistance and optical clarity both matter.

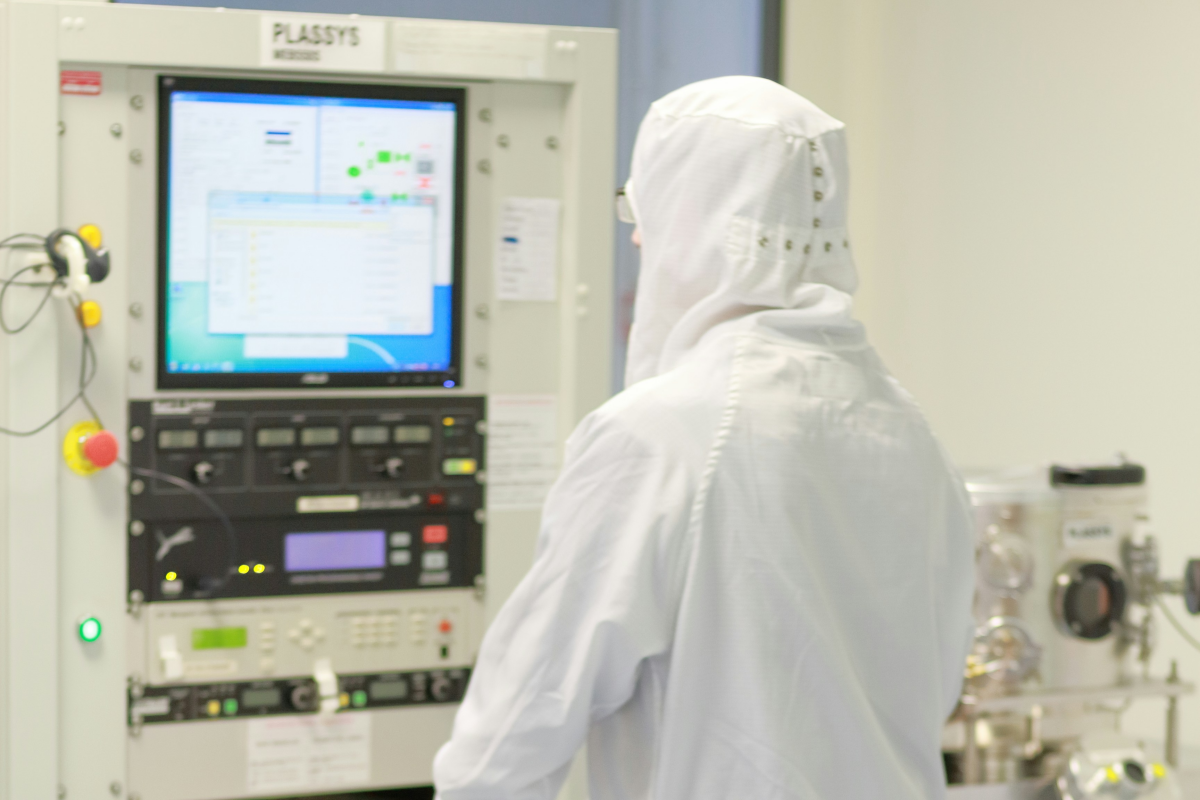

HMI Display Windows
Factory floor HMI protective windows, machine control panel overlays -- must survive vibration, impact, and chemical exposure.
In-Cabin Display Panels
Center console overlays, instrument cluster covers, and EV charging station interfaces requiring UV-stable optical panels.
From Your Drawing to Delivered Sheets
A structured workflow designed to eliminate the uncertainty that costs procurement teams time, money, and trust.
Drawing Review
Submit your CAD/DWG or spec sheet. Our engineers review feasibility within 24h.
Material Matching
We select the PC/PMMA ratio, color, and surface treatment matched to your end-use environment.
Rapid Prototyping
Physical sample produced and shipped for your approval before mass production commitment.
100% Inspection
Every sheet passes spectral analysis, peel-strength, dimensional, and visual inspection before packing.
Documented Delivery
Full QC report, material certs, and compliance docs shipped with every order. No surprises at customs.
Live QC Metrics
The Inspection Protocol That Eliminates Field Failures
Composite sheets fail in the field for three reasons: delamination, optical inconsistency, and dimensional drift. Our inspection protocol was designed specifically to catch each failure mode before the sheet leaves our facility.
Spectral Transmission Analysis
High-precision spectrophotometer measures light transmittance at 380-780nm across the full sheet surface, not just center-point sampling.
90° Peel Strength Test
Every batch undergoes ASTM D903 peel testing at the PC/PMMA interface. Minimum 4.0 N/mm threshold enforced. Delamination-risk batches are quarantined.
CMM Dimensional Verification
Coordinate Measuring Machine verifies critical dimensions on 100% of CNC-machined parts. Tolerance reports included in delivery documentation.
UV Aging Accelerated Test
UV-stabilized grades undergo 500h xenon arc lamp aging per ISO 4892-2. Yellowness Index delta reported and must remain ΔYI ≤ 2.0.
Built for How Procurement Actually Works
We design our documentation, sampling, and communication workflow around what procurement teams and engineers actually need to approve a new supplier.
Purchasing Manager
North America / Europe
What they worry about:
- ✗ Supplier disappears after first order
- ✗ No compliance docs at customs
- ✗ Field returns due to hidden defects
What Winson provides:
- ✓ Dedicated account contact + 24h response SLA
- ✓ RoHS/REACH certs with every shipment
- ✓ 100% inspection + QC report included
R&D Engineer
Design Phase · Feasibility
What they need:
- → Material data sheets with actual test data
- → Feasibility feedback on custom thickness ratios
- → Sample sheets for internal testing before commit
What Winson provides:
- ✓ Full TDS + spectral curve data on request
- ✓ Engineering consultation call within 24h
- ✓ Prototype samples dispatched in 7-10 days
Project Owner / OEM
Long-term Volume Partnership
What they're building toward:
- → Consistent quality across 10,000+ unit runs
- → Supplier who grows with product evolution
- → Locked-in pricing for annual forecasts
What Winson provides:
- ✓ Dedicated production line allocation for key OEMs
- ✓ Annual contract pricing with material cost buffer
- ✓ Full lifecycle technical support + design revision
"We've sourced composite panels from three different Chinese suppliers over five years. Winson is the first where the sample and the mass production batch are genuinely identical. The QC documentation they provide actually satisfies our German procurement audit -- that's rare."
M. Kessler
Senior Procurement Manager, Industrial HMI Manufacturer · Germany
Questions Engineers Actually Ask
Answers written by our engineering team -- not marketing.
What is the minimum order quantity for a custom thickness/color combination?
Can the PMMA layer be applied to both sides (dual-face composite)?
How does the bond interface perform under thermal cycling? Will it delaminate in automotive environments?
Can you match a specific Pantone color for the PMMA tint layer?
What documentation do you provide for EU customs and compliance audits?
Can you perform silk-screen printing on the composite sheet surface?
Get a Precise Quote for Your PC+PMMA Spec
Share your drawing or requirements. Our engineering team will respond within 24 hours with technical feasibility, material recommendations, and a transparent price breakdown.
Submit your spec or drawing
DWG, PDF, DXF, or even a rough sketch with dimensions
Engineering review within 24h
Feasibility check, material recommendation, and any DFM feedback
Transparent quote delivered
Unit cost, tooling (if any), lead time, and compliance doc list -- no hidden fees
