Winson Optics

Customized Gorilla Glass Panels Manufacturer

OEM-grade cover glass engineered for the demands of modern smart devices.

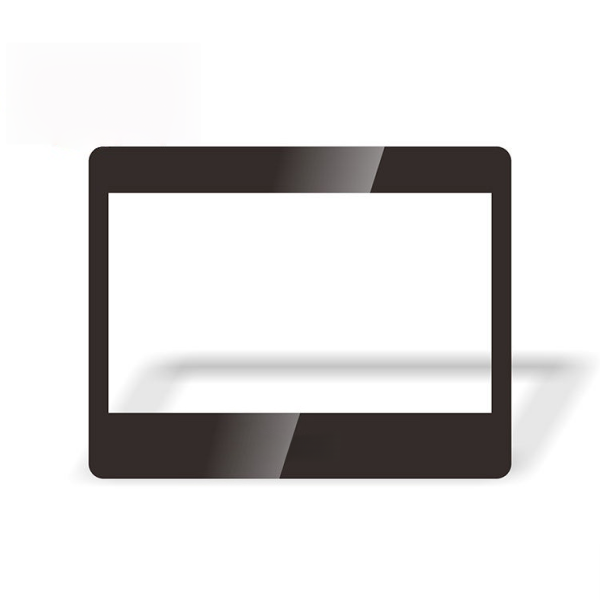

Gorilla Glass panel CNC precision cutting process in cleanroom

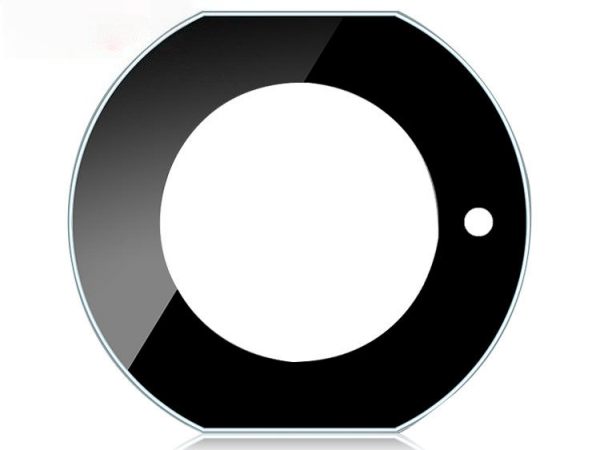

AR anti-reflection coating application on cover glass

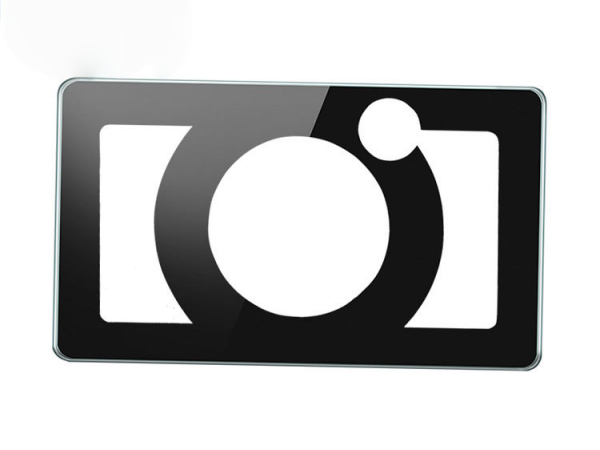

2.5D edge polishing and quality inspection
PRODUCT OVERVIEW

Not Just a Glass Panel.
A Precision-Engineered
Cover Solution.

At Winson, we approach every Gorilla Glass project the way a chief procurement auditor would -- scrutinizing every process step, every coating batch, every dimensional tolerance. The result is a cover glass component you can build your product roadmap around.

Our founder Iris spent 12 years on the buying side before joining Winson in 2025. That means we already know what your QC team will ask -- and we document it before you need to.

Procurement-Minded Manufacturing
We document every process step with traceability data, so your audits are painless and your supply chain is transparent.
Design-to-Mass-Production Pipeline
From your engineering drawings to rapid prototypes to high-volume runs -- one partner, zero handoff risk.
Engineering Support from Day One
Our engineers engage at the DFM stage, catching tolerance issues before tooling is cut -- saving you weeks and thousands.
TECHNICAL SPECIFICATIONS

Full Technical Data Sheet

Every parameter is verified by our in-house spectral analyzers and CMM equipment. Request the full IQC/OQC report with your sample order.

Substrate Specifications

Glass Type Gorilla Glass® 3 / 5 / 6
Vickers Hardness 622 - 664 HV
Density 2.42 g/cm³
Young's Modulus 71.5 GPa
Thermal Expansion (CTE) 7.6 × 10⁻⁶ /°C
Operating Temp. -40°C to +300°C

Dimensional Tolerances

Thickness Range 0.4 mm - 5.0 mm
Thickness Tolerance ± 0.05 mm
Size Tolerance (L/W) ± 0.1 mm
Hole Position Tolerance ± 0.05 mm
Surface Flatness < 0.1 mm/m
Max Panel Size 400 × 600 mm
APPLICATION SCENARIOS

Where Our Cover Glass Performs

Trusted across four verticals where surface integrity, optical clarity, and supply chain reliability are non-negotiable.

Smart home touch panel with Gorilla Glass cover
Smart Home

Touch Control Panels

Wall switches, smart displays, home automation interfaces requiring scratch resistance and optical clarity

Medical device display with precision cover glass
Medical

Medical Device Displays

Patient monitors, diagnostic equipment, surgical interfaces -- chemical resistance and cleanability critical

Industrial HMI control panel with rugged cover glass
Industrial

HMI & Control Panels

Factory automation HMI, PLC terminals, harsh environment displays requiring IP65+ sealing compatibility

Automotive HUD and in-vehicle display cover glass
Automotive

HUD & In-Vehicle Displays

Center console, instrument cluster, HUD combiner glass -- wide temperature range and vibration resistance

Quote estimator

Build your quote in 60 seconds

Adjust the parameters below. Our team confirms the exact figure within 24 hours.

Crystal grade
25 mm
5 mm100 mm
2.0 mm
0.5 mm10 mm
Surface finish
Coating
50 pcs
10 pcs1,000 pcs

Estimated unit price

$18-28
per piece (USD)
Crystal grade C-plane
Diameter 25 mm
Thickness 2.0 mm
Surface finish Standard
Coating None
Quantity 50 pcs

Simplified area-based estimate. Complex geometries or custom coatings may affect the final price.

FAQ

Questions Your Procurement Team Will Ask

We've been on both sides of the table. Here are the answers before you need to ask.

Is this genuine Corning® Gorilla Glass or a generic aluminosilicate?
We source genuine Corning® Gorilla Glass 3, 5, and 6 with full chain-of-custody documentation. Every batch comes with a material certificate traceable to the original Corning® mill sheet. If your project requires a cost-optimized aluminosilicate alternative, we can offer that separately -- clearly labeled and priced accordingly. We never substitute without explicit client approval.
What is the minimum order quantity (MOQ)?
Prototypes and samples: as low as 5-10 pcs. Production MOQ is typically 200-500 pcs depending on complexity of shape and coating stack. For standard geometries with no custom coating, MOQ can be as low as 100 pcs. We're structured for B2B mid-volume runs, not one-off consumer orders -- contact us with your volume forecast and we'll structure pricing tiers accordingly.
How do you handle quality escapes and warranty claims?
Every shipment is backed by our batch traceability system. If a quality issue is identified, we initiate an 8D corrective action report within 48 hours. Defective units are replaced or credited -- your choice. Because we retain full OQC data for every batch, root cause analysis is fast and documented. Our warranty covers dimensional non-conformance, coating adhesion failure, and surface defects per agreed acceptance criteria.
Can you provide RoHS / REACH compliance documentation for EU customs?
Yes -- standard with every order. We provide a full RoHS 3 (EU 2015/863) compliance declaration and REACH SVHC screening report. For medical device customers, we can additionally provide biocompatibility data per ISO 10993 for the coating materials used. These documents are pre-prepared and available within 24 hours of order confirmation.
What lead times should we plan for in our production schedule?
Samples: 7-14 business days from drawing approval. First production run: 3-5 weeks depending on coating complexity and volume. Repeat orders with established tooling: 2-3 weeks. We recommend clients place a blanket PO with quarterly releases for stable supply -- we offer buffer stock programs for high-volume accounts to eliminate lead-time risk entirely.
Can we conduct a factory audit before placing a production order?
Absolutely -- we welcome it. Our founder Iris spent 12 years as a procurement professional and has conducted hundreds of supplier audits herself. Our facility is audit-ready: documented process flows, calibrated equipment records, operator training logs, and SPC data are all maintained continuously. We can also arrange a virtual factory tour via video call for international clients before committing to an on-site visit.
