Customized High-Transparency PMMA Windows Manufacturer

Engineered for demanding display applications -- optical-grade acrylic panels with ≥92% light transmission, precision-cut to your exact specifications.

Consult Our Engineers

Why Optical-Grade PMMA?

The engineering case for choosing precision acrylic over standard glass in display applications.

50% Lighter

Half the weight of equivalent glass -- easier integration, lower shipping cost

Machinable Precision

Complex shapes, cutouts, and chamfers achievable with tight tolerances

UV Resistant

UV-stabilized grades available -- no yellowing over time in outdoor use

Cost-Efficient

Superior optical performance at a fraction of sapphire or specialty glass cost

Technical Data Sheet

Material & Optical Specifications

All parameters measured per ISO standards. Custom grades available upon request for specialized applications.

Parameter	Standard Grade	Optical Grade
Light Transmission	≥88%	≥92%
Haze Value	≤1.5%	≤0.5%
Refractive Index (nD)	1.491	1.491-1.493
Thickness Range	0.5mm - 30mm	0.5mm - 30mm
Thickness Tolerance	±0.2mm	±0.1mm
Surface Flatness	< 0.3mm/m	< 0.1mm/m
Operating Temp.	-40°C ~ 80°C	-40°C ~ 85°C
Surface Hardness	2H (pencil)	3H (hard-coated opt.)
Density	1.19 g/cm³
Compliance	RoHS, REACH, FDA (food-contact grades available)

Customization Scope

Built to Your Exact Blueprint

Every parameter is configurable. Submit your DXF, DWG, or PDF drawing -- our engineers respond within 24 hours with feasibility assessment and pricing.

Shape & Dimension

Rectangular, circular, custom polygon, cutouts, slots, and stepped edges. Max sheet size 2000×1500mm.

Surface Treatments

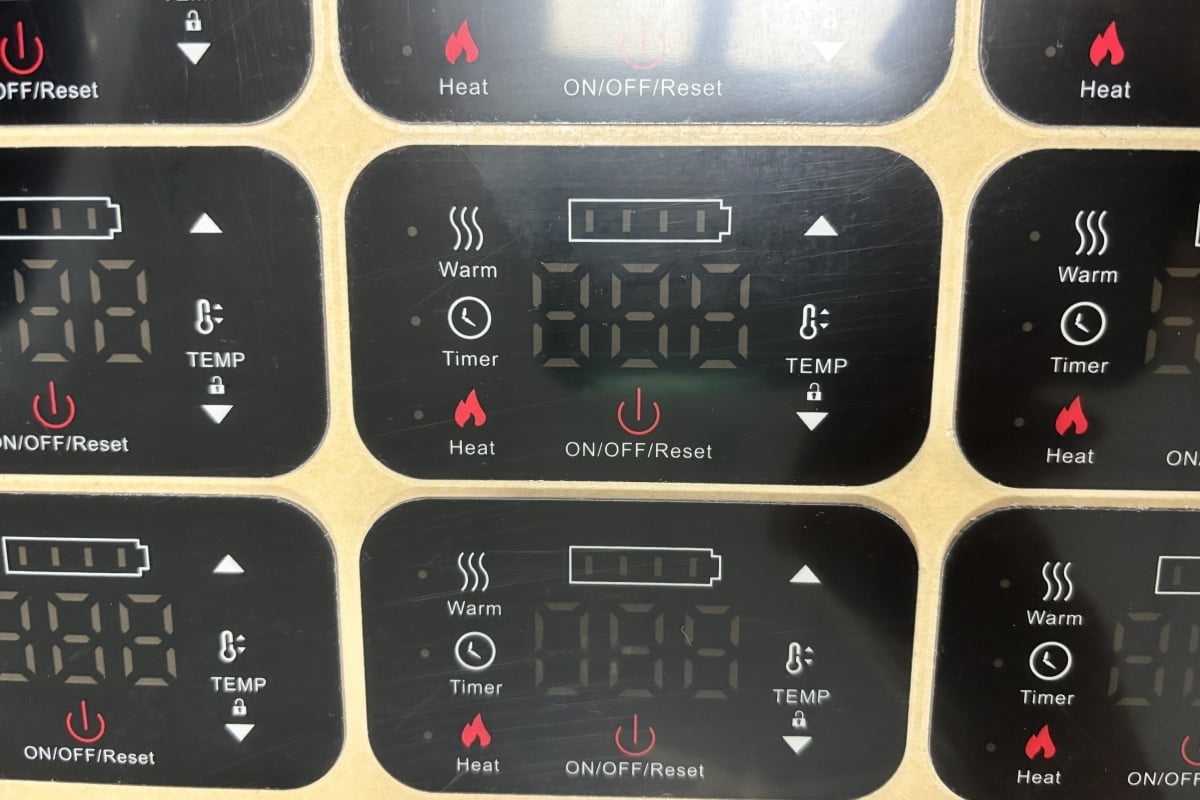

AR coating, hard coating (3H-5H), anti-fingerprint (AF), AG (anti-glare), silk-screen printing, and tinting.

Edge Finishing

Polished, matte, beveled, or C-chamfer edges. Laser-cut or CNC-routed to eliminate micro-cracks.

Bonding & Assembly

OCA/PSA lamination, multi-layer bonding, touch sensor integration, and frame assembly available.

Application Sectors

Where Our PMMA Windows Perform

From consumer electronics to harsh industrial environments -- optical-grade PMMA delivers where it matters most.

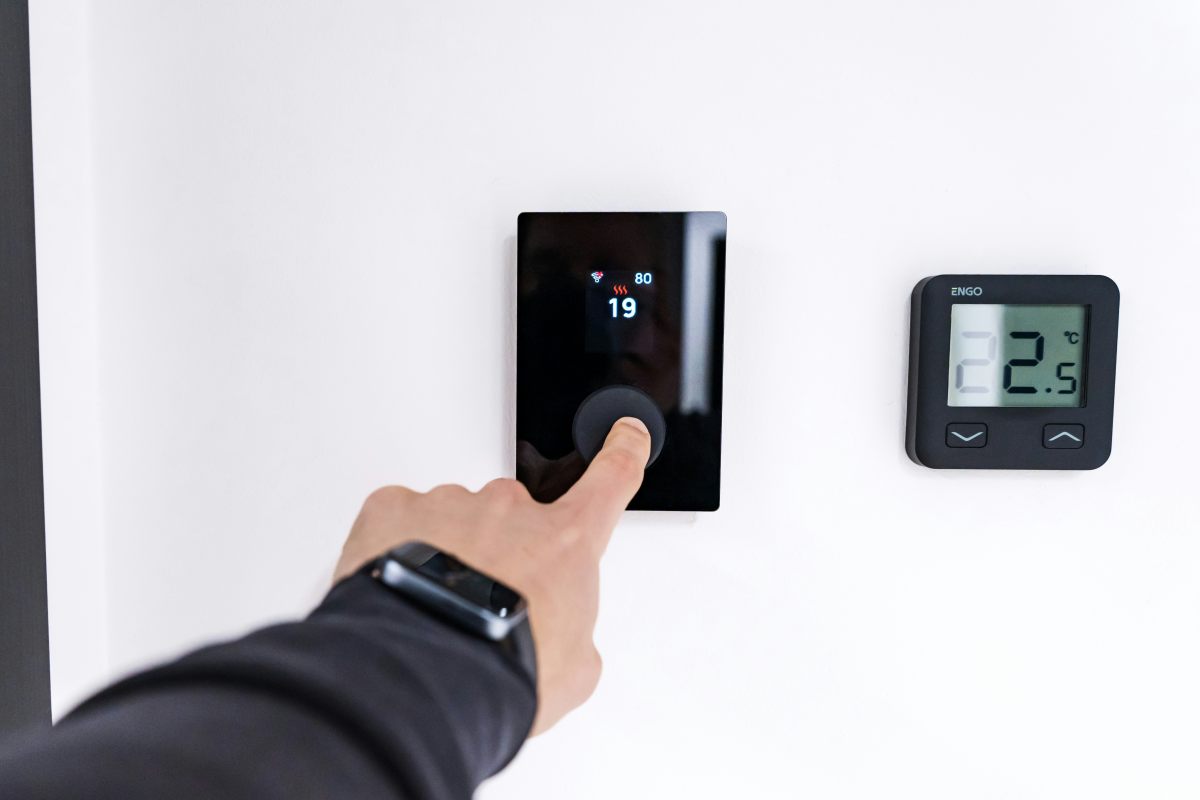

Smart Home

Touch Panel & Control Interfaces

Thermostat covers, smart switch overlays, and home automation display windows requiring optical clarity with capacitive touch compatibility.

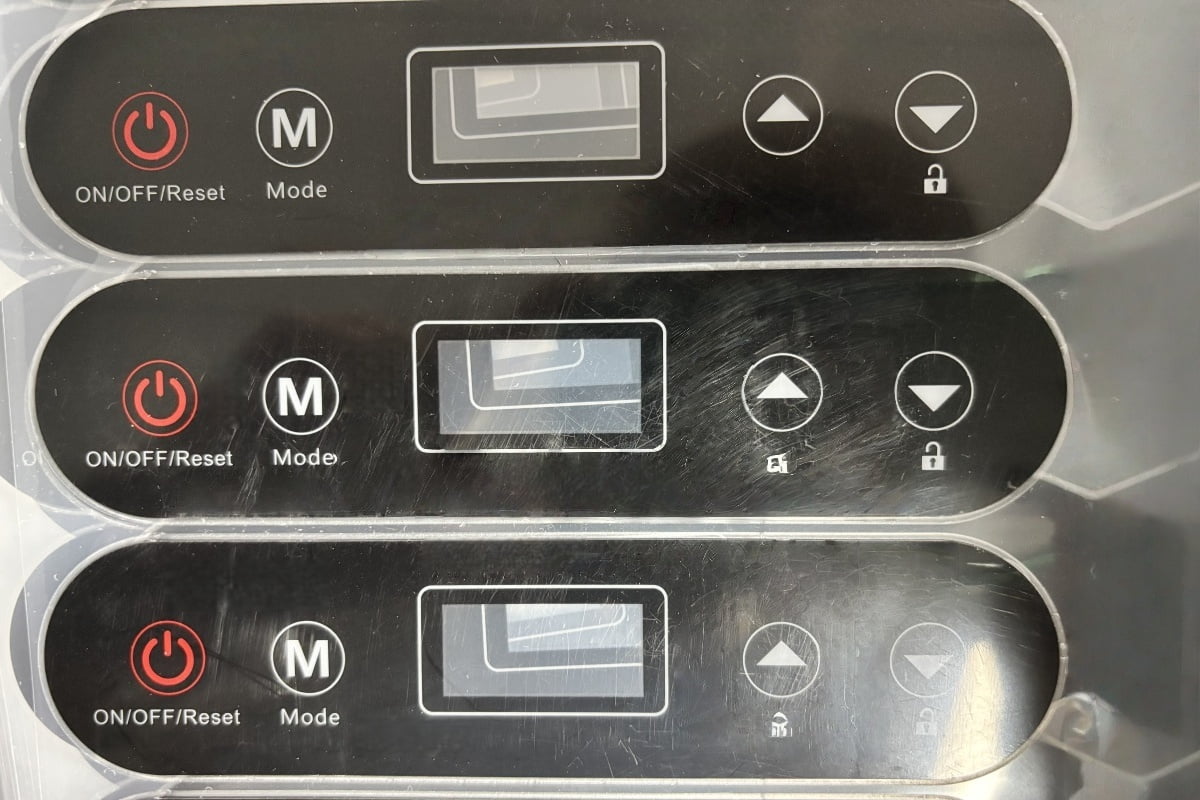

Touch-compatible Silk-screen printing

Medical device display window PMMA panel

Medical Devices

Diagnostic & Monitoring Equipment

Display covers for patient monitors, infusion pumps, and diagnostic devices. FDA-compliant grades, chemical-resistant surfaces.

FDA-grade available Chemical resistant

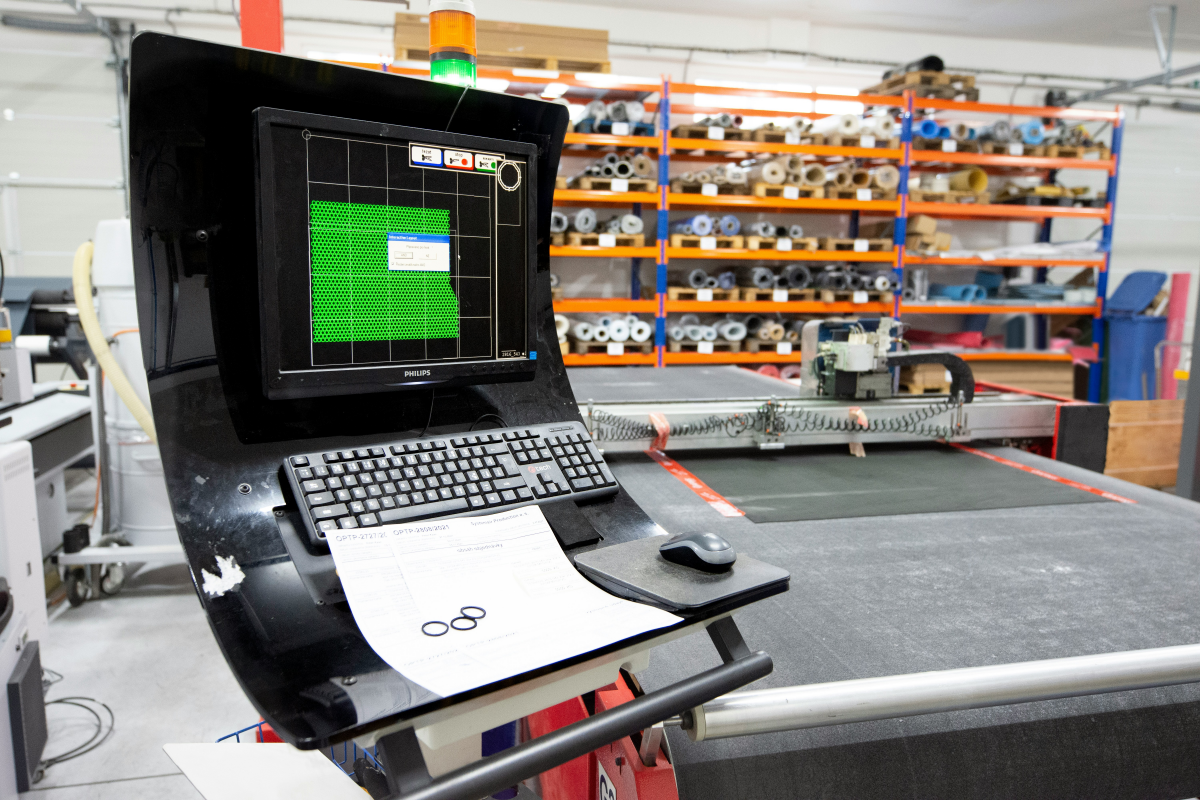

Industrial HMI

Industrial Control Panels

HMI covers for factory automation, CNC machines, and process control systems. Impact-resistant with IP-rated edge sealing options.

Impact resistant IP sealing options

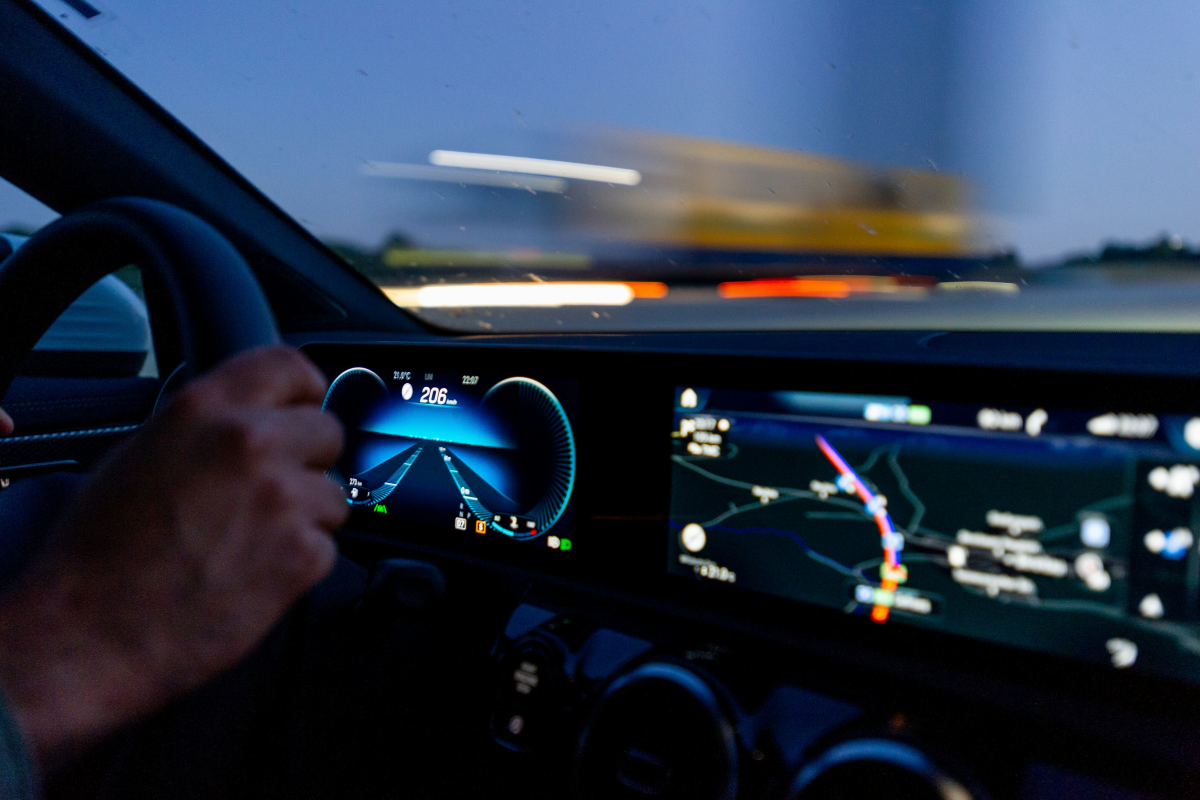

Automotive

In-Vehicle Display Covers

Center console displays, instrument cluster windows, and HUD combiner elements with wide temperature range and UV stability.

UV-stabilized Wide temp range

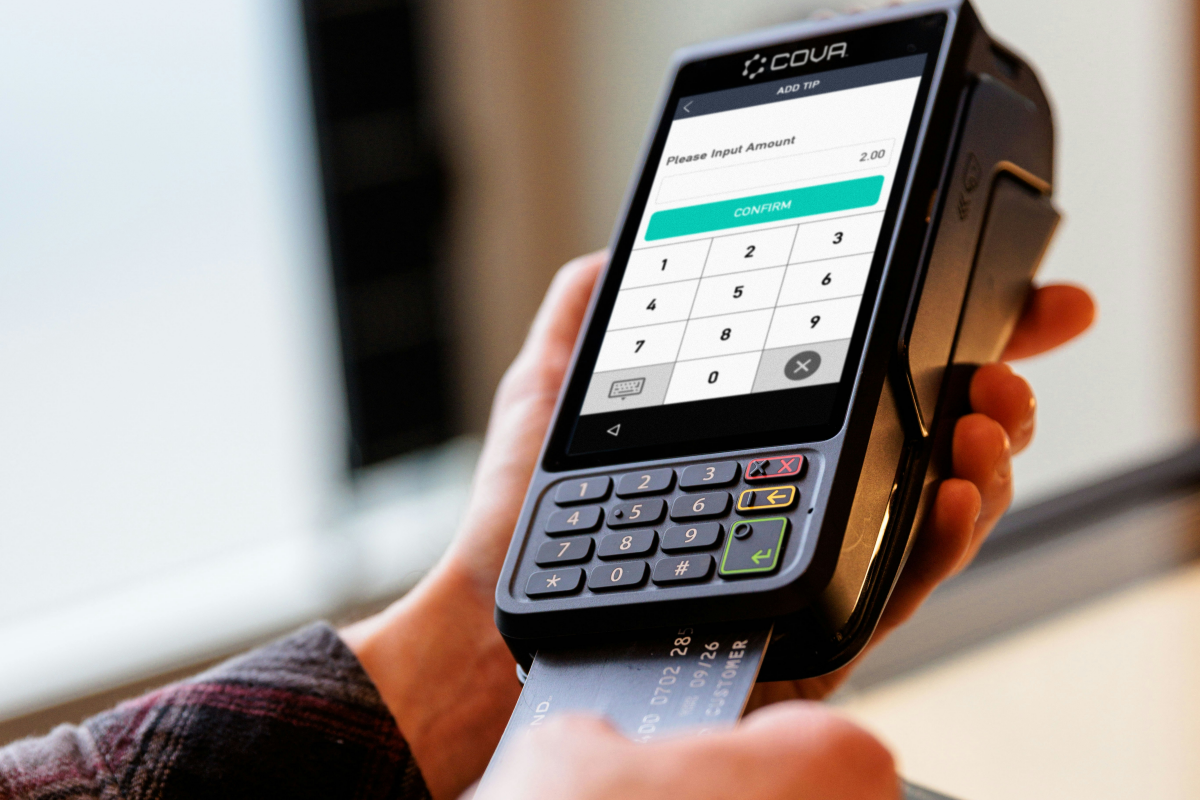

Retail / Kiosk

POS Terminals & Kiosks

Self-service kiosk display covers, POS terminal screens, and interactive signage requiring scratch resistance and high-clarity optics.

Anti-fingerprint Scratch resistant

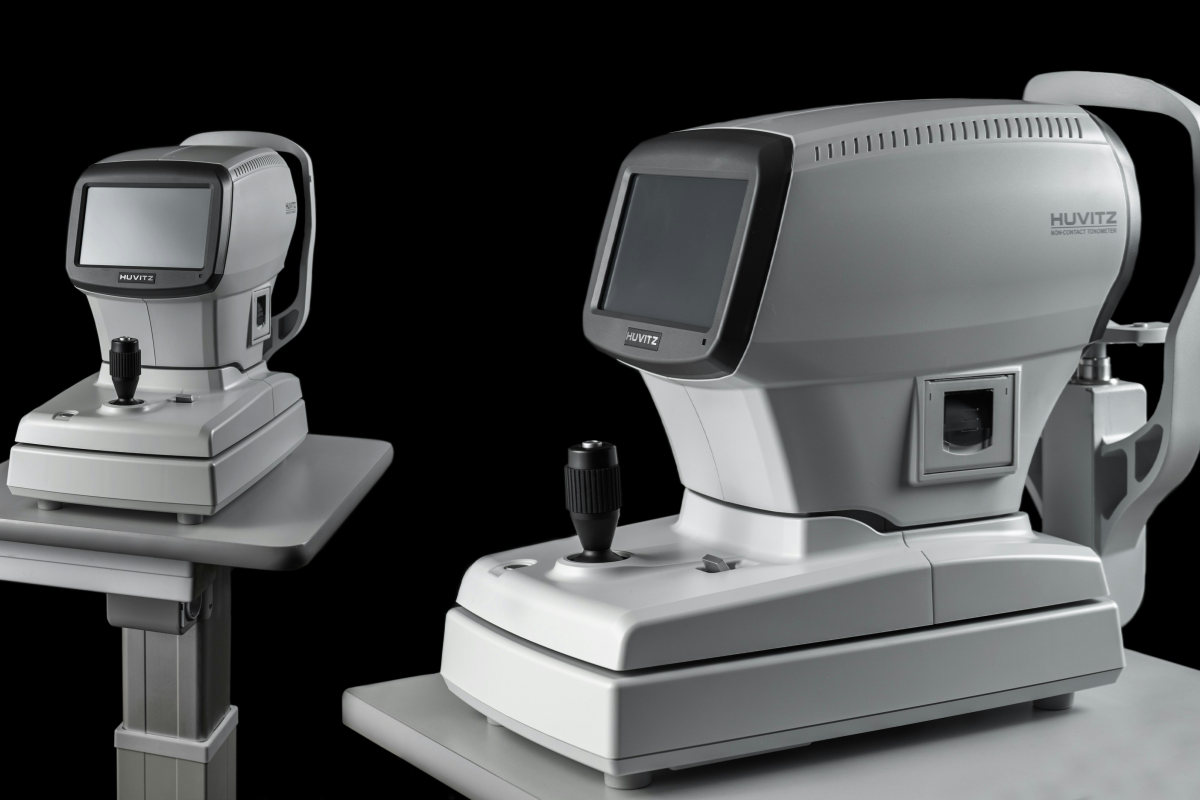

Scientific instrument optical window PMMA

Instrumentation

Scientific Instruments

Optical windows for measurement devices, flow cells, and laboratory equipment where consistent optical properties are critical.

Optical grade Low birefringence

Technical FAQ

Questions Engineers Ask Us

Straight answers to the technical questions that matter in your design and sourcing process.

Can PMMA windows be used with capacitive touchscreens?

Yes. PMMA has a dielectric constant of approximately 3.0-3.5, which is compatible with most projected capacitive (PCAP) touch controllers. For optimal touch sensitivity, we recommend keeping the cover glass thickness under 3mm and can provide custom dielectric testing reports. We also offer ITO-coated PMMA for resistive touch applications.

What is the minimum order quantity for custom PMMA windows?

Prototyping starts at 5-10 pieces with no tooling fee for standard cuts. Production MOQ is typically 50-100 pieces depending on complexity and surface treatment. We support scaling from NPI through mass production with consistent pricing tiers documented in your quote.

How does PMMA compare to Gorilla Glass for display cover applications?

PMMA offers comparable light transmission (≥92% vs ~91% for Gorilla Glass) at 50% lower weight and significantly lower cost. Gorilla Glass has superior scratch hardness (6H Mohs vs 2-3H for PMMA) and better chemical resistance. We recommend PMMA for cost-sensitive, lower-abrasion environments and can supply both materials -- we'll help you select the right one based on your application requirements and budget.

Do you provide AR (anti-reflective) coating on PMMA?

Yes. We apply vacuum-deposited AR coatings (single-layer and multi-layer) achieving reflectance <0.5% per surface. AR-coated PMMA can reach >98% transmission. We also offer combined AR+AF (anti-fingerprint) and AR+HC (hard coat) stacks. Coating durability is tested per MIL-C-675C and ASTM D1044 standards.

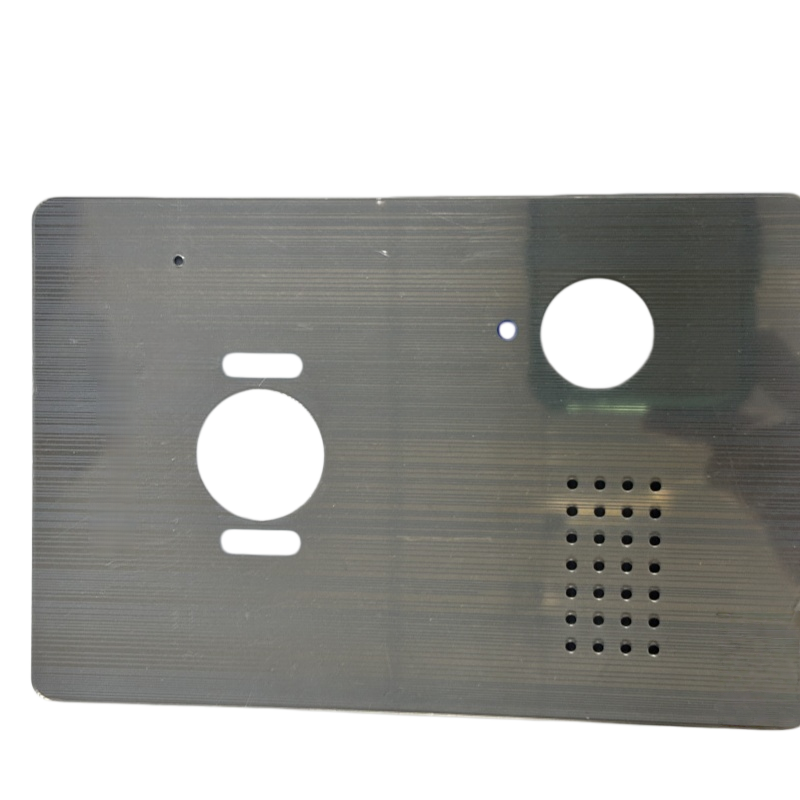

Can you handle complex shapes with internal cutouts or countersunk holes?

Absolutely. We use 5-axis CNC routing and precision laser cutting for complex profiles, internal cutouts, slots, and countersunk or through-holes. Minimum internal radius is 0.5mm for CNC; laser cutting achieves tighter radii. All cut edges are polished to prevent stress cracking. Submit your DXF and our engineers will confirm feasibility within 24 hours.

Still have a technical question?

Iris reads every inquiry personally. If your question isn't in the FAQ, it'll be in the next version.

Ask Iris directly [email protected]
