Customized High-Alumina / Panda Glass Manufacturer

Industrial-grade aluminosilicate cover glass engineered for demanding display and touch applications. From blueprint to mass production -- with the transparency and certainty your supply chain demands.

Product Overview

What Is High-Alumina / Panda Glass -- and Why It Matters

High-alumina glass (often referred to by trade names such as "Panda Glass") is an aluminosilicate substrate that undergoes a controlled ion-exchange chemical tempering process. This replaces smaller sodium ions at the glass surface with larger potassium ions, generating a deep compressive stress layer that dramatically increases scratch resistance, drop performance, and flexural strength compared to standard soda-lime glass.

At Winson Optics, we source verified aluminosilicate substrates and process them through our Shenzhen cleanroom facility -- cutting, edging, drilling, silk-screen printing, AR/AF coating, and final 100% AOI inspection -- delivering a finished, ready-to-assemble cover glass panel precisely to your drawing.

Whether you need a small R&D prototype batch or a high-volume production run for a consumer or industrial product, our procurement-minded workflow eliminates the hidden costs and quality surprises that haunt international buyers.

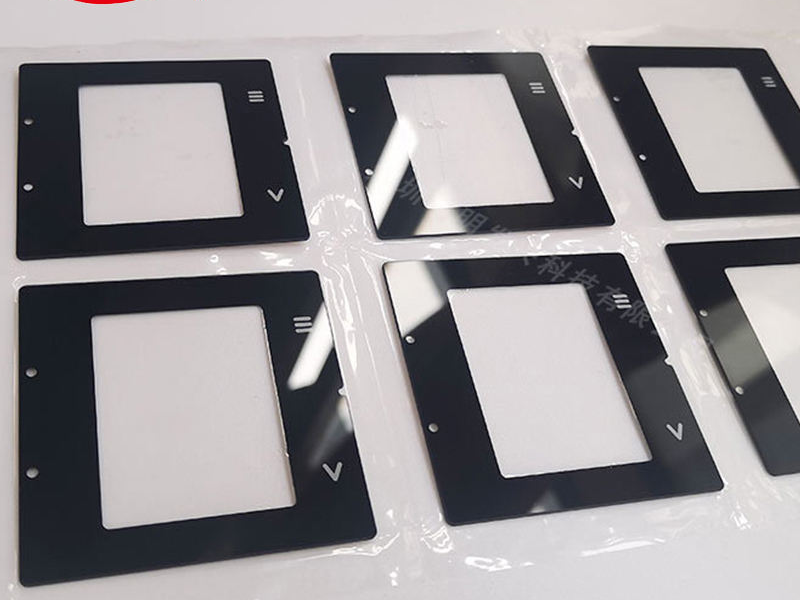

Precision-cut high-alumina cover glass panel with AR coating, ready for assembly

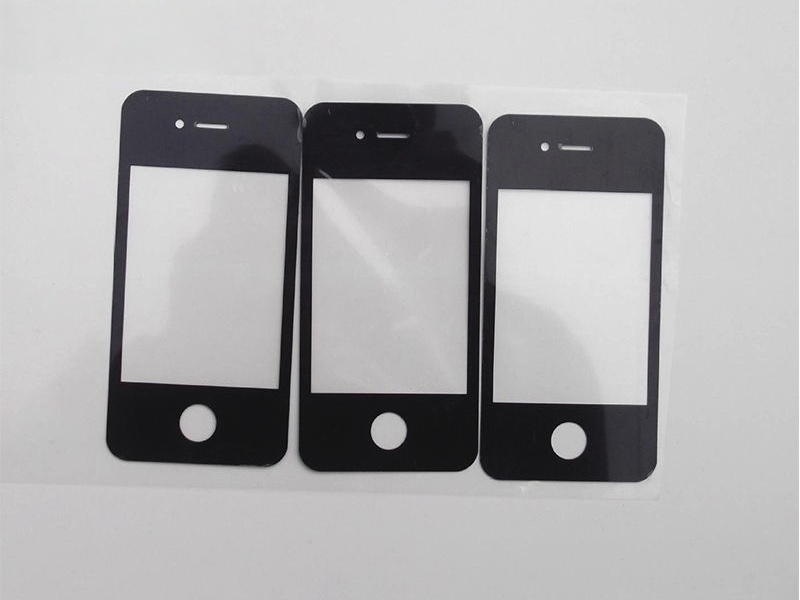

Automated silk-screen printing line applying custom logo and color layers onto glass substrate

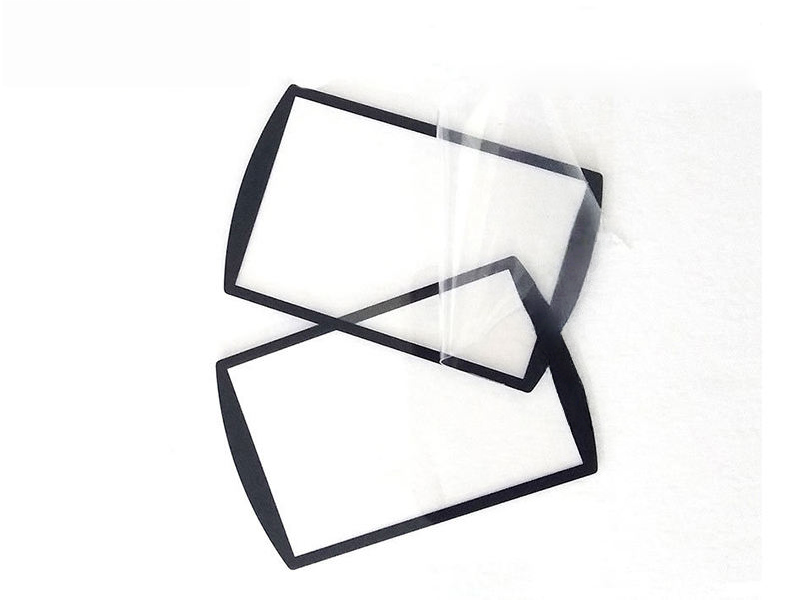

CNC precision cutting machine processing aluminosilicate glass to tight dimensional tolerances

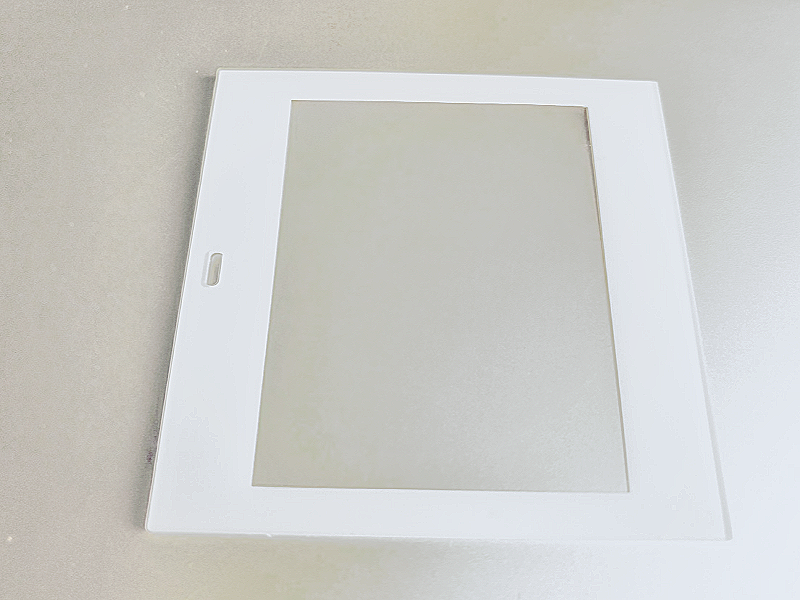

100% automated optical inspection (AOI) station verifying surface quality and dimensional accuracy

The Winson Difference: Procurement Thinking in Manufacturing

Our partner Iris brings 12 years of professional procurement experience to the factory floor. We anticipate your QA requirements, documentation needs, and delivery expectations before you ask.

≥ 600
MPa Flexural Strength
Post chemical tempering
±0.05
mm Dimensional Tolerance
CNC precision cutting
> 91%
Light Transmittance
Visible spectrum (uncoated)
15-Day
Sample Lead Time
From approved drawing
Technical Data

Full Specification Sheet

Engineered parameters your R&D and QA teams need to make confident sourcing decisions.

Material Properties

Glass Type Aluminosilicate
Al₂O₃ Content ≥ 14%
Hardness 7 - 7.5 Mohs
Density 2.42 g/cm³
Refractive Index (nd) 1.50 - 1.52
Transmittance (visible) > 91%

Mechanical Performance

Flexural Strength ≥ 600 MPa
Surface Compressive Stress ≥ 700 MPa
Depth of Layer (DOL) 25 - 50 µm
Young's Modulus ~74 GPa
Vickers Hardness ≥ 580 HV
Thermal Shock Resistance ΔT ≥ 150°C

Processing Capabilities

Thickness Range 0.4 - 3.0 mm
Max Panel Size 600 × 900 mm
Dimensional Tolerance ± 0.05 mm
Min. Hole Diameter ≥ 0.8 mm
Edge Chamfer / Bevel C0.1 - C0.5 mm
Surface Roughness (Ra) < 1 nm

Available Surface Treatments & Coatings

AR Coating Anti-reflection
AF Coating Anti-fingerprint
AG Etching Anti-glare
Silk-Screen Custom printing
ITO Coating Touch electrode
DLC Coating Diamond-like carbon
ISO 9001:2015
RoHS 3 Compliant
REACH SVHC Screened
MSDS / COA Available
Where It's Used

Application Scenarios

High-alumina and Panda Glass excel wherever durability, optical clarity, and touch sensitivity must coexist.

Smart home touch panel with high-alumina glass cover
Smart Home

Smart Home Touch Panels

Wall-mounted control panels, smart thermostats, and home automation displays demand a glass that survives daily finger contact, cleaning agents, and aesthetic scrutiny.

  • Silk-screen logo & border printing
  • AF coating for fingerprint resistance
  • Custom shapes: round, square, cutouts
Medical device display panel with chemically tempered cover glass
Medical

Medical Device Displays

Patient monitors, infusion pump interfaces, and diagnostic equipment require glass with biocompatibility, chemical resistance to disinfectants, and reliable optical performance.

  • Cleanroom-processed (Class 1000)
  • High chemical resistance (IEC 60068)
  • Full lot traceability & COA
Industrial HMI panel with ruggedized cover glass
Industrial

Industrial HMI & Control Panels

Factory floor HMI terminals, PLC operator panels, and ruggedized displays need impact resistance, wide temperature tolerance, and legibility under harsh lighting.

  • AG etching for outdoor readability
  • -40°C to +85°C operating range
  • IP65-compatible edge sealing design
Automotive HUD and center console display with cover glass
Automotive

Automotive HUD & Center Console

In-vehicle infotainment screens, HUD combiners, and instrument cluster covers must pass AEC-Q grade thermal cycling and vibration tests while maintaining optical clarity.

  • Curved / 2.5D edge forming available
  • Low birefringence for HUD optics
  • IATF 16949 compatible documentation
Wearable device smartwatch cover glass
Wearables

Wearable & IoT Devices

Smartwatches, fitness trackers, and IoT sensor nodes demand ultra-thin, lightweight cover glass with superior scratch resistance and consistent touch sensitivity.

  • Ultra-thin: 0.4 mm - 0.7 mm
  • Round / complex shape CNC cutting
  • Scratch resistance: > 7 Mohs
POS terminal and self-service kiosk cover glass panel
POS / Kiosk

POS Terminals & Self-Service Kiosks

High-traffic point-of-sale and self-service kiosk displays require vandal-resistant cover glass that maintains touch accuracy through millions of interactions.

  • High-strength tempered: ≥ 600 MPa
  • Large format up to 600 × 900 mm
  • Branded silk-screen printing
Common Questions

Frequently Asked Questions

Answers to the questions our international buyers ask most often.

What is the minimum order quantity (MOQ) for custom High-Alumina Glass?
For prototyping and sampling, our MOQ starts at 50 pieces with a 15-day lead time. For mass production runs, MOQ is typically 500 pieces, though this varies by complexity. We encourage early-stage R&D orders -- our engineering team will advise on the most cost-effective batch size for your specific geometry.
Can you match Corning Gorilla Glass or AGC Dragontrail specifications?
We source verified aluminosilicate substrates from qualified suppliers including CDGM and Irico. While we do not brand our product as Gorilla Glass (a Corning trademark), our chemically tempered high-alumina glass achieves equivalent or superior performance metrics in hardness, flexural strength, and DOL. We can provide side-by-side test reports upon request. For projects with strict OEM substrate requirements, please specify in your RFQ.
What file formats do you accept for custom drawings?
We accept DXF, DWG, PDF, STEP, and IGES formats. For silk-screen artwork, AI (Adobe Illustrator) and high-resolution PDF are preferred. If you only have a sketch or concept, our engineering team can produce a formal drawing for your review and approval -- this is part of our standard DFM service at no additional charge for qualified projects.
How do you handle quality disputes or non-conforming shipments?
Every shipment includes a full COA with measurement data and defect photography. If a non-conformance is identified upon receipt, we request photographic evidence and initiate a formal 8D corrective action within 48 business hours. For confirmed defects caused by our manufacturing process, we offer priority re-production or credit -- your choice. Our 5-year lot traceability ensures root cause analysis is always possible.
What documentation is available for EU CE marking or FDA submissions?
We provide: COA, MSDS, RoHS 3 Declaration of Conformity, REACH SVHC Declaration, ISO 9001 Certificate, and material composition reports. For medical device customers requiring IEC 60601 or ISO 10993 biocompatibility documentation, please indicate this in your RFQ so we can prepare the appropriate substrate and documentation package. Our partner Iris has direct experience supporting EU MDR and FDA 510(k) documentation workflows.
