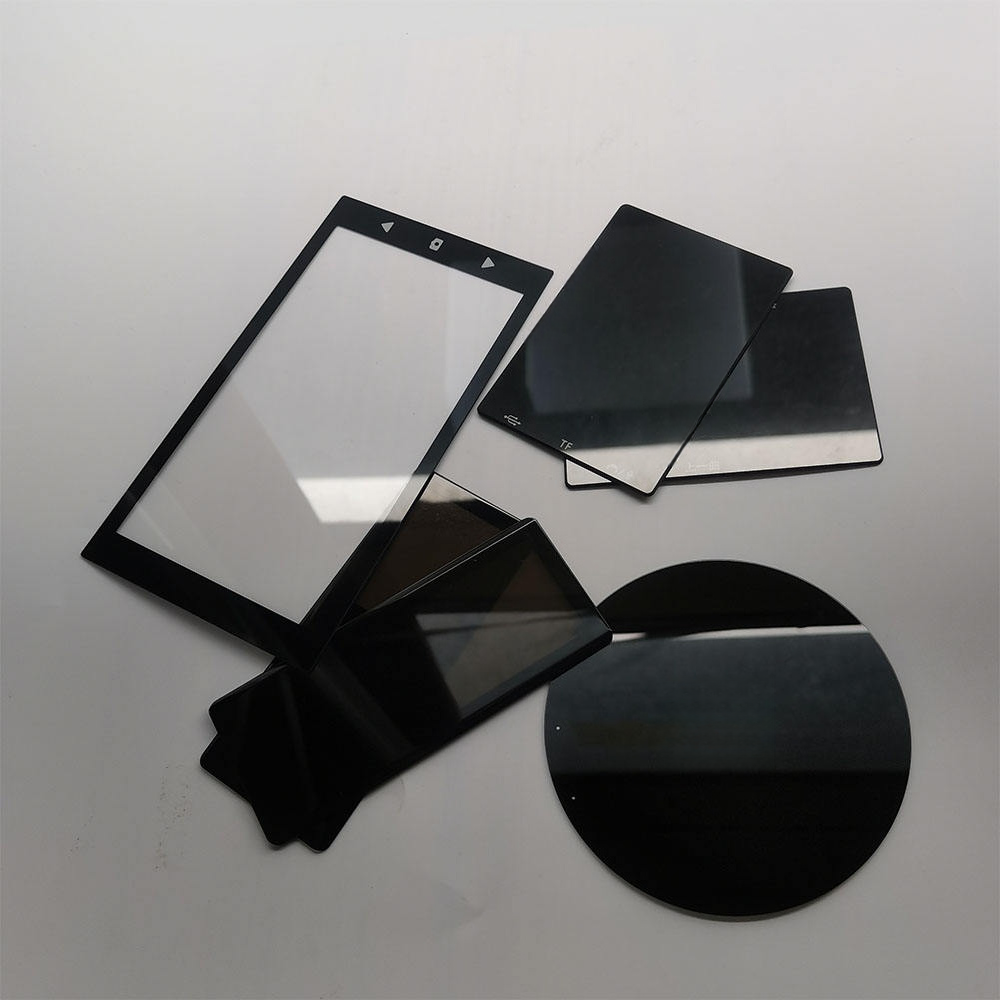

Customized
Impact-Resistant
PC Faceplates
250× stronger than glass at 1/2 the weight. Purpose-engineered for industrial HMIs, medical enclosures, and ruggedized displays -- with Winson's 100% inspection guarantee built into every batch.
The Engineering
Case for PC
When glass shatters in a field cabinet or a medical cart takes a corner hit, the cost isn't just the panel -- it's downtime, liability, and re-certification. PC faceplates eliminate that failure mode entirely.
Where Impact Resistance
Is Non-Negotiable
From factory floors to surgical suites -- PC faceplates are specified when failure is not an option.

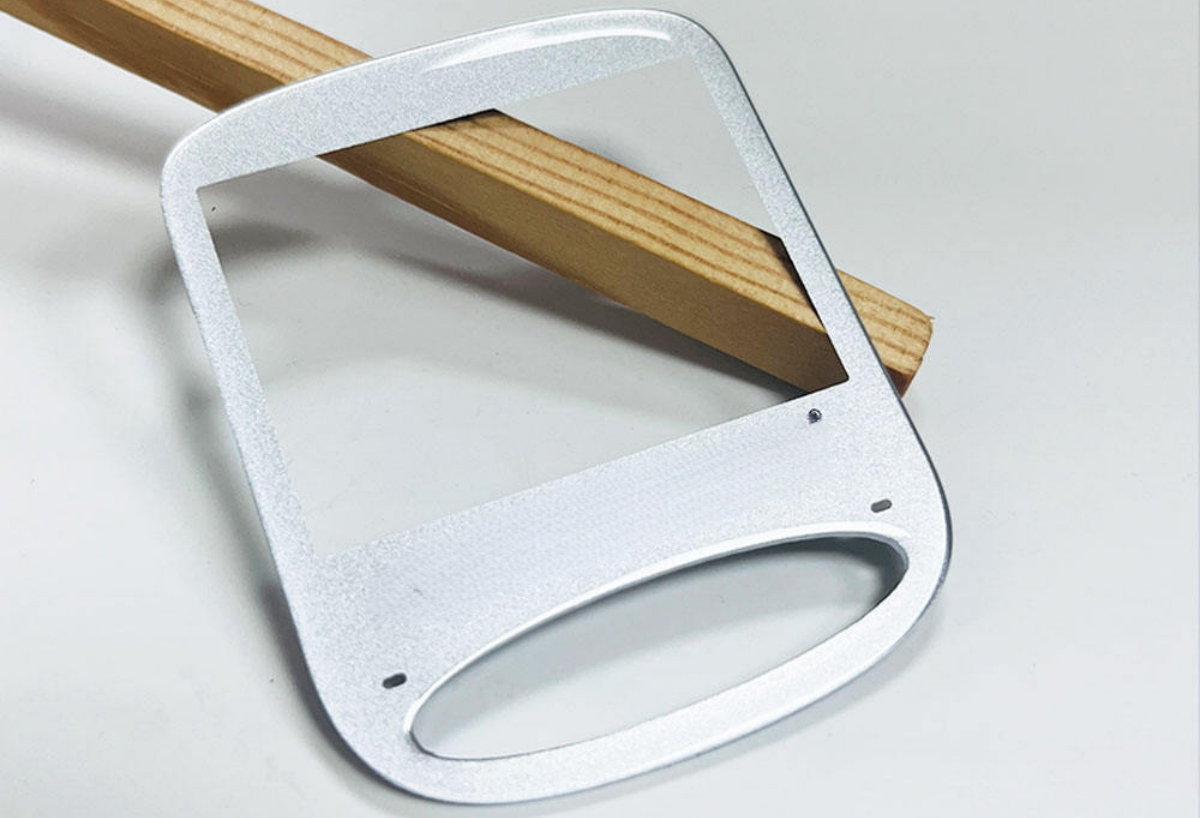

HMI & Machine Operator Panels
Vibration, tool impacts, and chemical cleaning cycles demand more than standard glass. PC faceplates on CNC machines, PLCs, and factory HMIs survive the shift without cracking or crazing.
- IP65/IP67 gasket-compatible edges
- Anti-glare surface treatment available
- Custom cutouts for buttons & connectors
Patient Monitors & Carts
Shatter-free compliance for bedside devices. Autoclave-resistant grades available. Biocompatible surface finishes on request.
Inquire →Touch Panels & Wall Controllers
Thin-wall PC for touch-enabled surfaces. Capacitive-touch compatible with precise dimensional tolerances for seamless wall integration.
Inquire →HUD & In-Cabin Display Covers
Wide thermal range (-40°C to +120°C), UV-stable grades, and optical-clarity coatings for automotive-grade display protection.

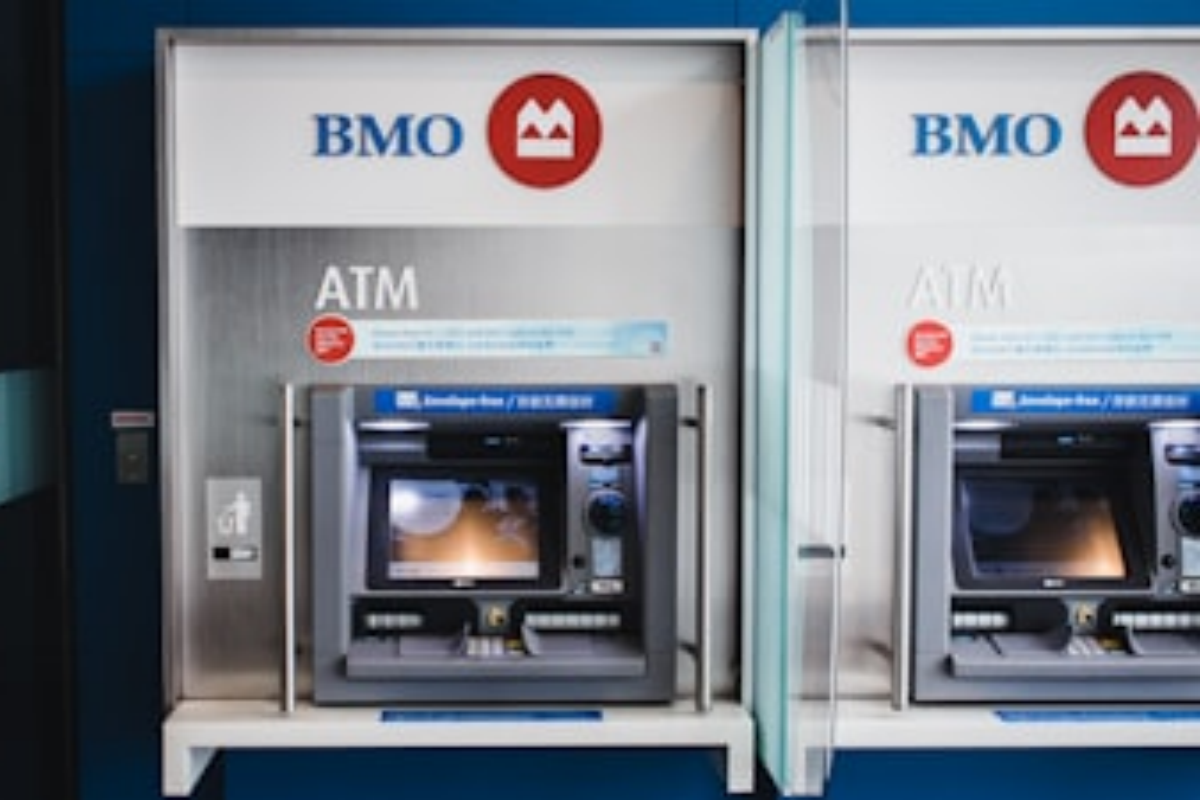

Inquire →Vandal-Resistant Kiosk Covers
Outdoor kiosks, ATMs, and access control panels need IK10 vandal resistance. UV-stabilized PC maintains clarity through years of sun exposure.
Inquire →
Every Parameter.
No Guesswork.
Winson's engineering team documents every material parameter. What you see here is what your QC team will verify on arrival.
All specs are verifiable with CoC (Certificate of Conformance) and full material traceability reports included with every shipment -- no extra charge.
Material & Physical Properties
| Property | Specification | Standard |
|---|---|---|
| Base Material | Bayer / Covestro Makrolon® PC | Premium Grade |
| Thickness Range | 0.25 - 5.0 mm (±0.05mm) | Custom |
| Light Transmission | > 88% (uncoated) | ASTM D1003 |
| Impact Strength | 850 J/m (Notched Izod) | ASTM D256 |
| Operating Temp. | -40°C to +120°C | Continuous use |
| Flame Rating | UL94 V-2 | UL 94 |
| Impact Protection Class | IK10 (20J) | EN 62262 |
| Surface Hardness | 1H (with hard coat) | Pencil Test |
Customization Capabilities
| Feature | Options Available |
|---|---|
| Dimensions | Up to 1200 × 800mm; tolerance ±0.1mm |
| Surface Finishes | Glossy / Matte / Anti-Glare / Textured |
| Printing | Screen-Print · Pad Print · Digital |
| Coatings | AR / Hard Coat / UV-Stabilized / ITO |
| Cutouts & Features | CNC routed holes, slots, countersinks |
| Colors | Clear / Tinted / Opaque (RAL / Pantone) |
| MOQ | 50 pcs (prototype: 1-10 pcs) |
From Your Drawing
to Certified Delivery
Designed by a team that has sat on both sides of the procurement table. Every step eliminates a common point of supply chain failure.
Submit Drawing
DXF, DWG, PDF, or sketch. We accept any format -- our engineers handle the rest.
DFM Review
24-hour Design for Manufacturability review. We flag issues before tooling -- not after.
Rapid Prototype
7-10 day prototype turnaround. Physical samples with full dimensional report.
100% Inspection
Every unit inspected. Optical clarity, dimensional accuracy, and surface defects -- zero compromise.
Certified Delivery
CoC, REACH/RoHS declarations, and full traceability reports ship with every order.
"I've been the buyer who received wrong specs, late shipments, and missing paperwork. Every process we built at Winson was designed to eliminate exactly those failures. Our customers shouldn't have to chase their supplier for a CoC."
We Inspect Like
Your Auditor Would
Most factories do AQL sampling. We do 100% inspection -- because when your device fails in the field, "statistically acceptable" is not a defense.
Our cleanroom production environment, automated optical inspection lines, and full material traceability mean your QC team can audit us at any time. We welcome it.
Questions We Hear
from Procurement Teams
Straight answers. No marketing fluff.
Can you match our exact drawing tolerances, including complex cutouts?
What documentation comes with the shipment for EU compliance?
How do you handle non-conforming units -- and what's your defect rate?
What's the minimum order quantity, and can we start with a small prototype run?
Can PC faceplates be certified to IK10 and UL94 V-0 simultaneously?
Get a Precise Quote
in 24 Hours
No generic price lists. Our engineers review your drawing and return a line-item quote with DFM notes -- so you know exactly what you're getting before committing.
