Eliminate Optical Interference
Engineering high-performance multi-layer interference coatings that drive light transmission to 99%+. We eliminate reflections that compromise critical optical data.
The Physics of
Interference
Standard glass loses ~8% of light to reflection. Winson solves this at the molecular level through multi-layer nano-stacking.
Nano-Stack Engineering
We deposit alternating layers of Magnesium Fluoride and Metal Oxides. By controlling thickness to ±1nm, we create phase-shifted waves that cancel reflections across the full visible spectrum.
High-Energy Sputtering
Unlike "soft" evaporation coatings, our vacuum sputtering ensures atomic-level adhesion. The film becomes part of the substrate, preventing peeling under thermal cycling and humidity stress.
Visual Proof
Eliminate Optical Interference
Same substrate. Same lighting. The difference is the coating stack.
Ion-assisted sputtering · 7-layer nano-stack · ±1nm thickness control
Coating Solutions by Application
We calibrate the optical stack based on your specific wavelength and durability requirements.
Broadband AR (BBAR)
Optimized for 400nm-700nm. Essential for medical diagnostic displays where color accuracy and zero-reflection are vital for surgery.
- Transmittance: >99%
- Color: Neutral

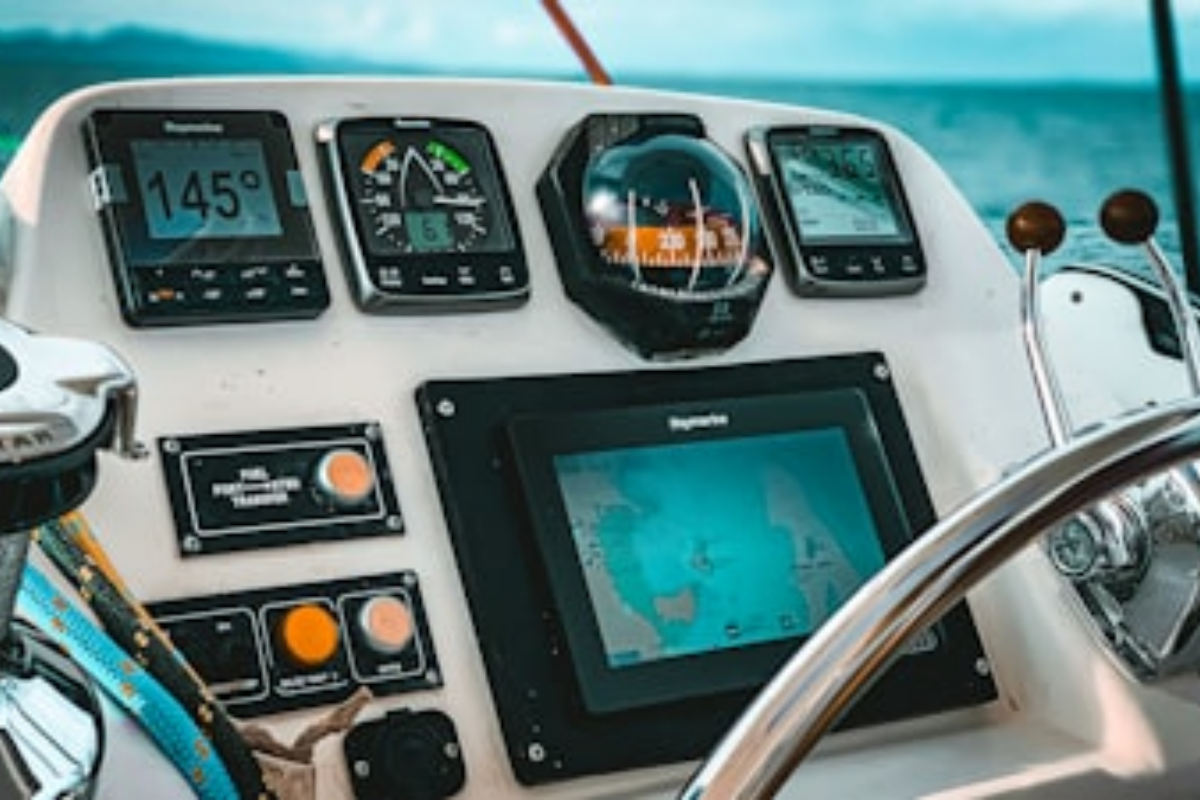

AR + AF Dual Shield
Combining Anti-Reflective and Anti-Fingerprint properties. Designed for outdoor kiosks, marine consoles, and automotive interfaces.
- Salt Spray: 96H Pass
- Contact Angle: 115°
Infrared (IR) AR
Specifically tuned for 850nm, 940nm, or 1550nm wavelengths. Critical for LiDAR, facial recognition, and autonomous sensor windows.
- NIR Loss: < 0.2%
- Substrate: Sapphire/Glass
Coating Reliability Standards
Verified by Spectrophotometer & Environmental Chambers
| Performance Test | Winson Standard | Test Parameter |
|---|---|---|
| Adhesion Strength | Grade 5B (No Peel) | Cross-Hatch Tape Test (3M 610) per ISO 2409 |
| Abrasion Resistance | Δ Haze < 0.2% | Steel Wool 1kg Load / 2000 Cycles |
| Humidity Stability | Zero Spectrum Shift | 60°C / 90% RH for 500 Hours |
| Spectral Accuracy | ± 0.5% Tolerance | Verified by Shimadzu UV-3600i Plus |
| Max Substrate Size Scalability | 1,200 mm × 1,100 mm | Single-piece coating chamber capacity; custom fixtures available for oversized panels |
| Monthly Capacity Volume Ready | 50,000+ pcs / month | Scalable via dual-chamber scheduling; NDA-protected capacity reservation available |
Compatible Substrates
Our AR coating process is validated and production-qualified on the following substrate materials.
Sapphire Crystal
9 Mohs · Al₂O₃
Borosilicate 3.3
Low CTE · Schott D263
Gorilla Glass
Corning® · Ion-exchange
Fused Silica / Quartz
UV-grade · SiO₂
Soda-Lime
Float glass · High-volume
Panda Glass
Domestic equiv. · Mobile-grade
Custom Substrate
Submit for feasibility check
* Coating adhesion and spectral performance may vary by substrate composition. Request a substrate-specific qualification report.
Technical Documentation
Download AR Performance Report (PDF)
Why Purchasing Managers Choose Winson AR
"In the optics trade, a coating is only as good as its adhesion. Cheap evaporation AR often fails environmental tests within months. As your sourcing ally, I ensure our vacuum chambers utilize Ion-Assisted Sputtering. We don't just provide clarity; we provide industrial-grade durability that protects your brand's reputation."
Iris
Global Sourcing Ally @ Winson Optics
Have a Spec?
Let's Verify It.
Upload your optical spec sheet or describe your wavelength requirements. Our coating engineers will confirm feasibility, tolerance match, and lead time within 24 hours.
Accepted: PDF · DWG · DXF · STEP · Spectral requirement documents
Direct Factory Dispatch from Shenzhen-Dongguan Axis · 50,000+ pcs/month Capacity
