Precision Diagnostics:
Reliability at the
Critical Moment
Engineered for 98%+ light transmittance, chemical resistance to harsh sterilizers, and ±0.05mm structural precision for the world's leading medical OEMs.
Transmittance
Meeting Stringent Medical Requirements
Every challenge in medical optics demands an engineered answer. Here is how Winson solves the real-world pain points of leading medical OEMs.

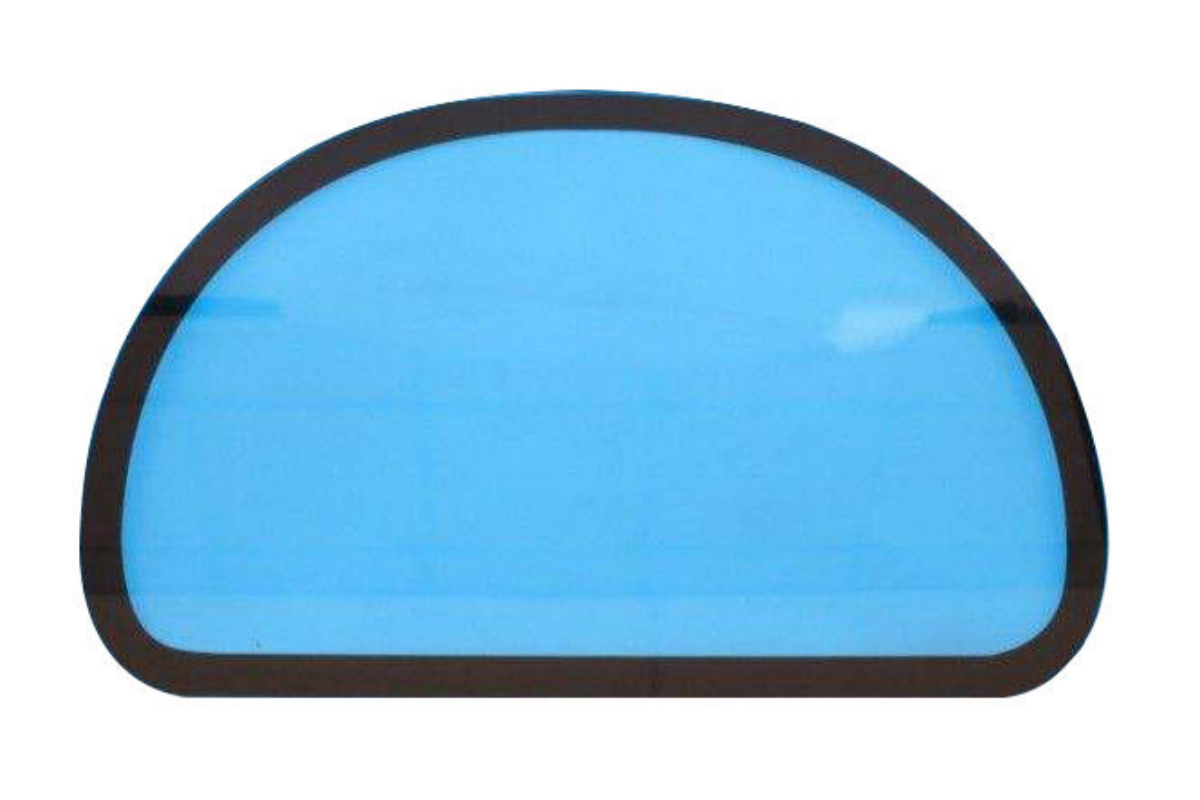

Chemical Resistance
Sterilizers cause coating peel-off and degradation.
Our AR coatings utilize Vacuum Sputtering technology, ensuring molecular-level bonding. This provides permanent durability against Hydrogen Peroxide (H₂O₂) and high-concentration Alcohol disinfection without any degradation or peeling.

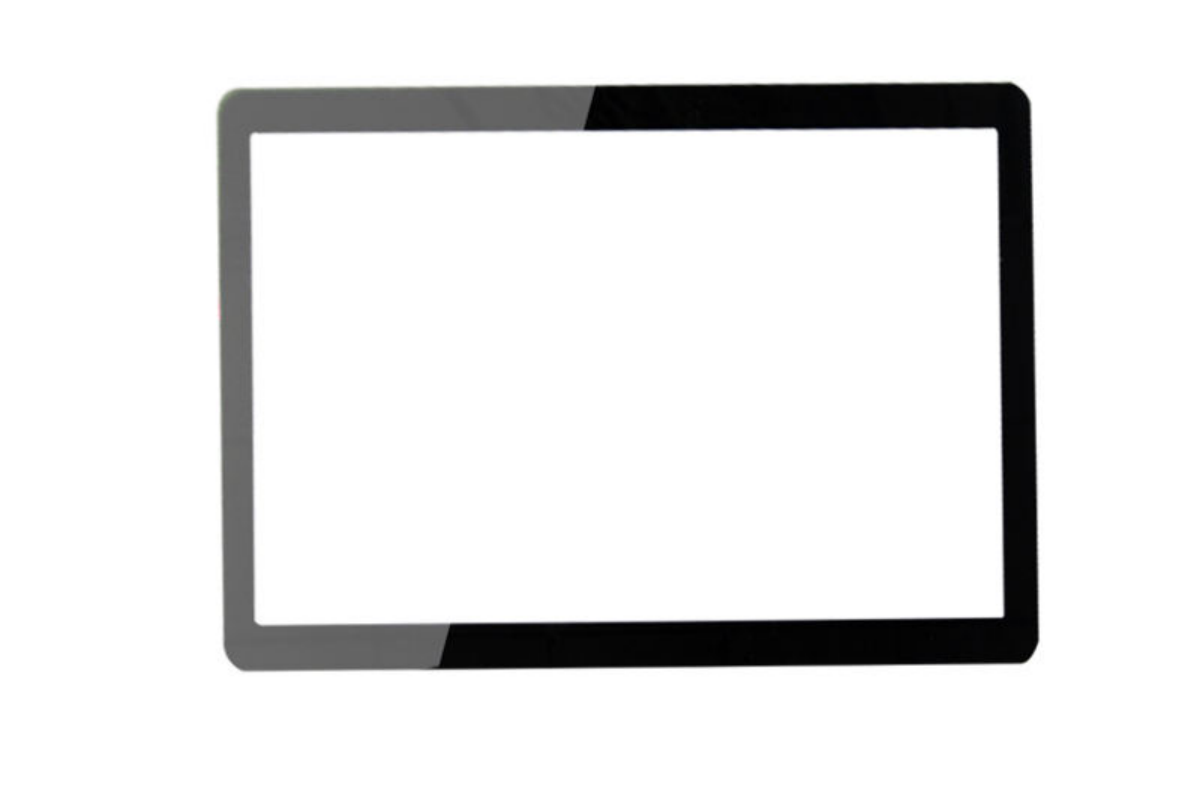

Optical Purity
Moiré patterns degrade accuracy in blood analyzers.
By selecting Electronic-grade high-alumina glass and implementing stress-controlled tempering, we eliminate internal optical ripples, ensuring 100% distortion-free imaging for endoscopes and diagnostic screens.

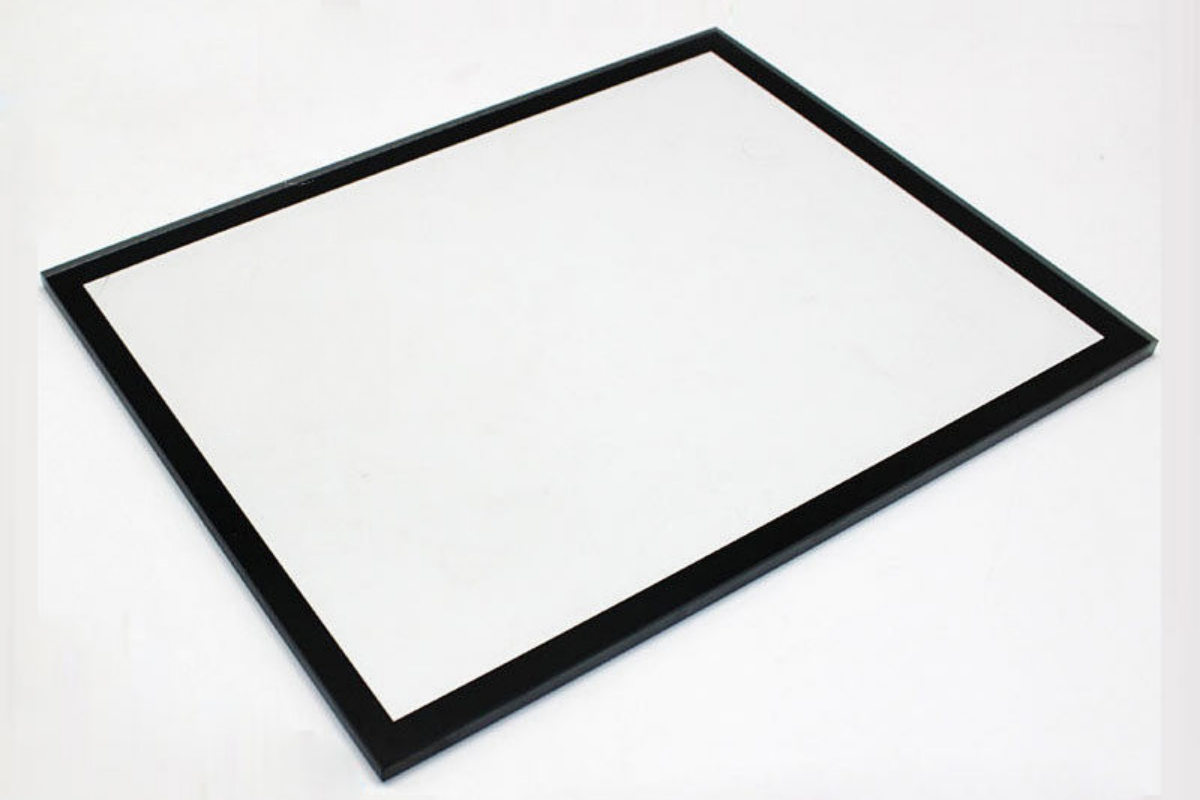

Mechanical Safety
Sharp fragments contaminate sterile operating zones.
Our deep chemical strengthening process, combined with optically clear anti-shatter film lamination, ensures that even under extreme impact, no sharp fragments enter the sterile operating area.

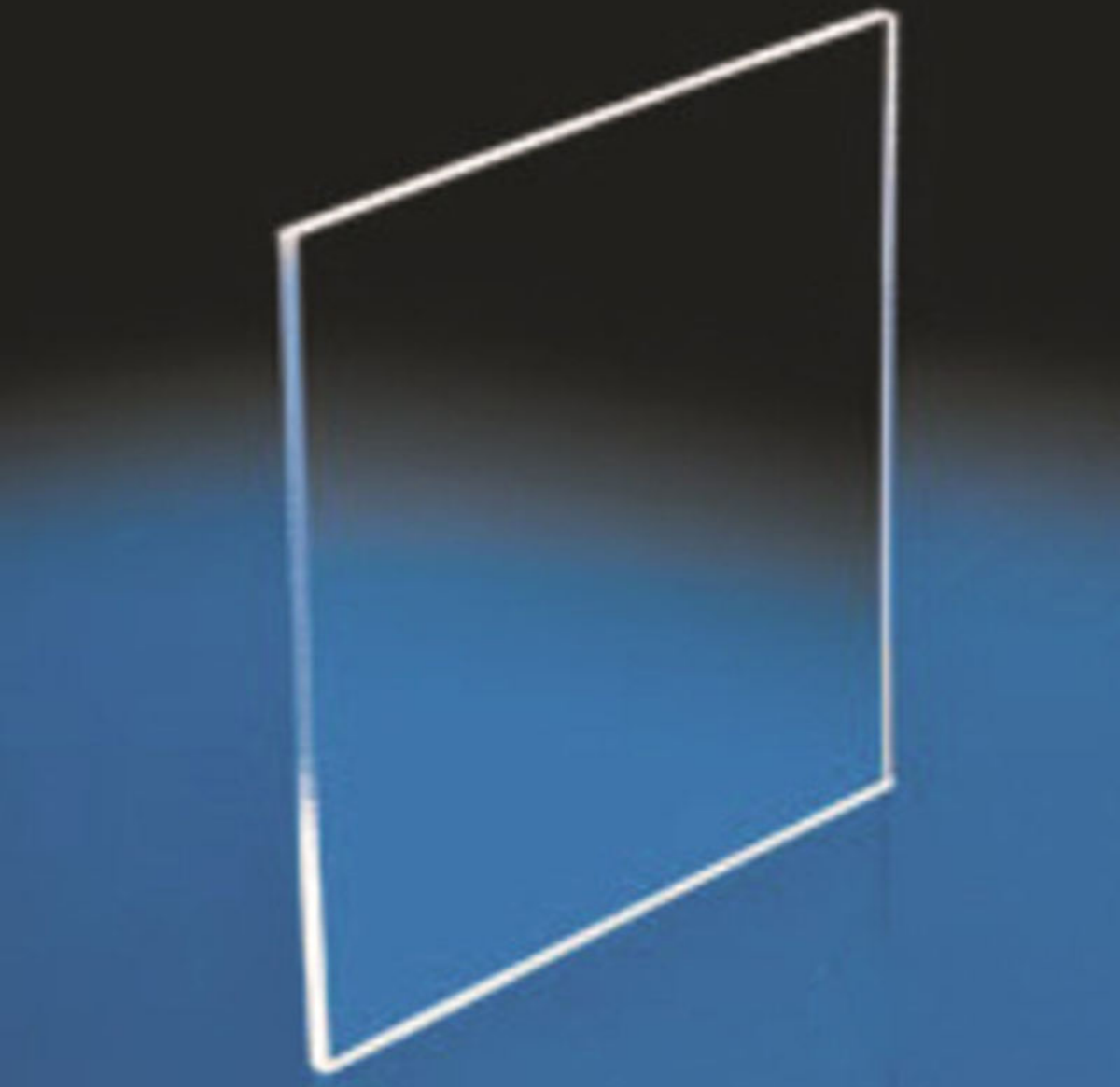

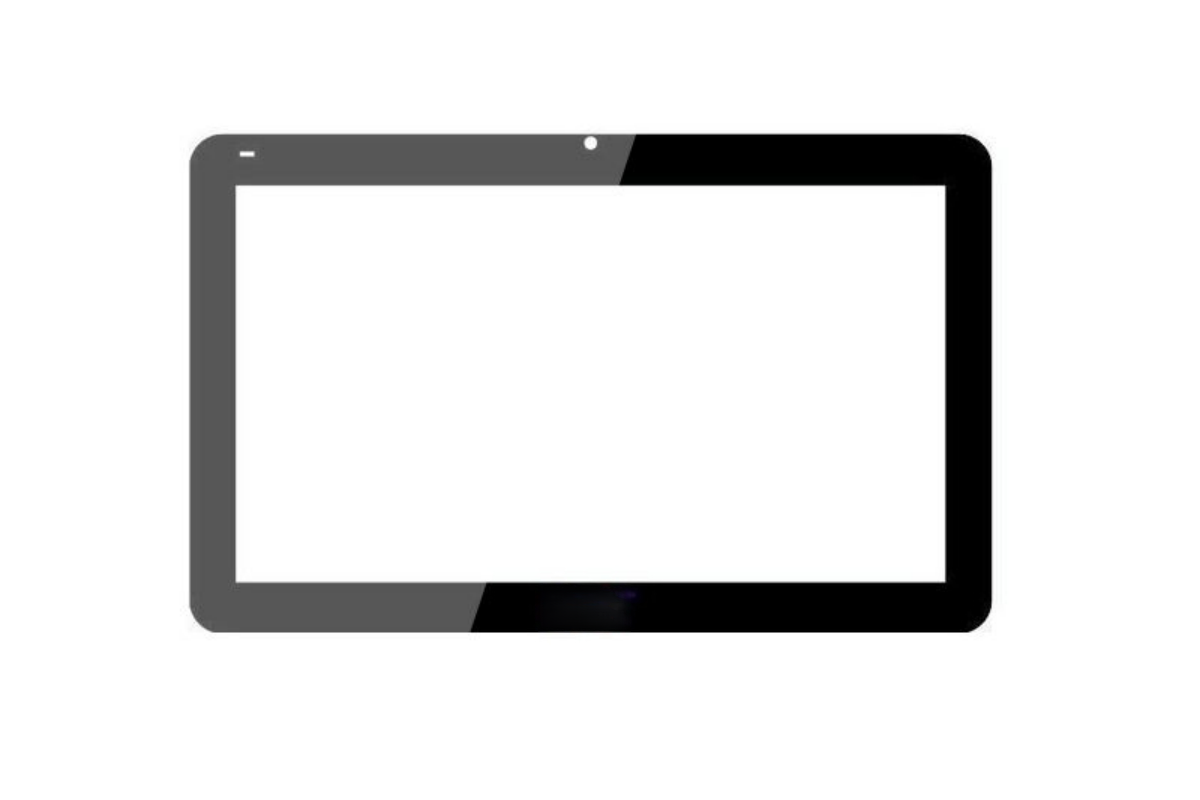

IP67/68 Sealing Precision
Waterproof sealing conflicts with optical clarity requirements.
Our proprietary Step Glass (Multi-level CNC) technology achieves ±0.05mm edge tolerances, enabling simultaneous IP67/68 waterproof sealing and 98%+ optical transmittance -- without compromise, as validated in biochemical analyzer deployments.

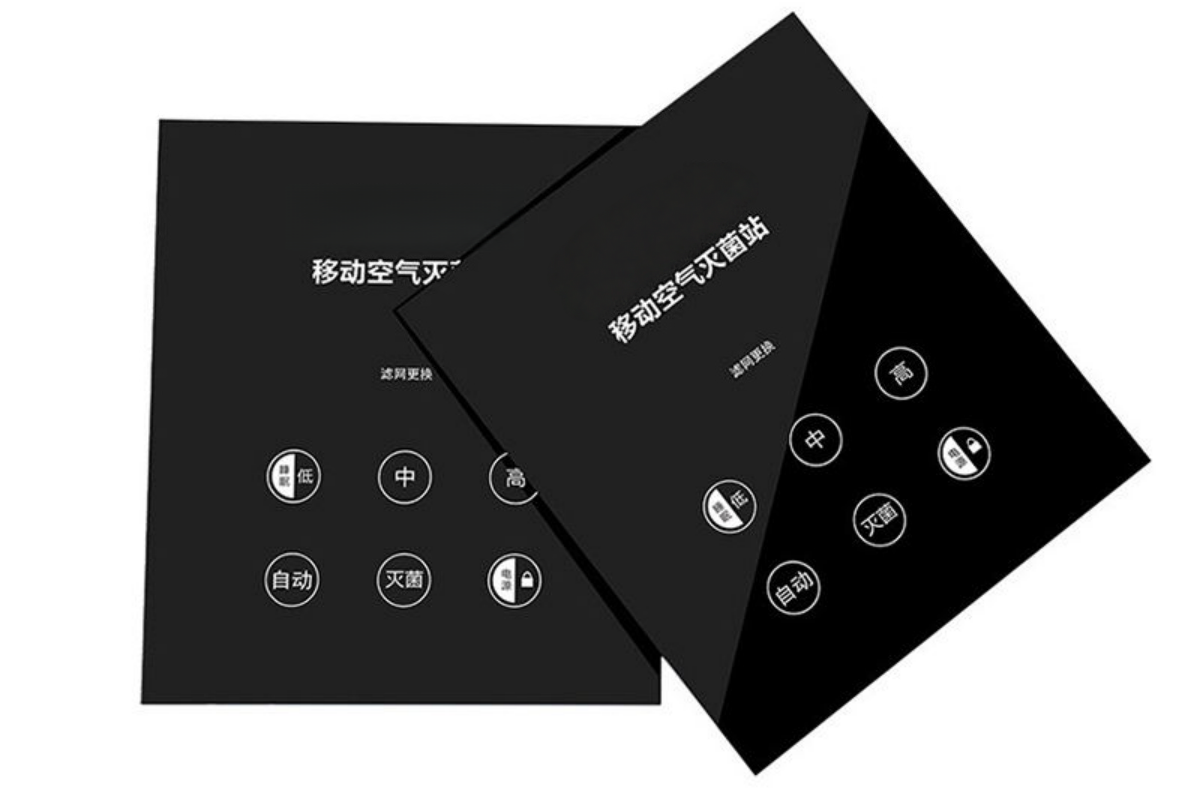

Cleanroom Contamination Control
Micro-dust particles compromise optical sensor accuracy.
All silk-printing, coating, and assembly operations are conducted in an ISO-certified Class 1000 Cleanroom. Combined with 100% VMS dimensional verification and spectrophotometer-validated transmittance reporting, every batch ships with a full traceability certificate.
Medical Grade Standard Parameters
Verified spectrophotometer specifications for high-performance medical diagnostic equipment.
| Specification | Winson Capability |
|---|---|
| Transmittance | Up to 98% (Double AR) |
| Surface Hardness | 7H - 9H |
| Edge Accuracy | CNC ±0.05mm |
| Surface Treatment | AF + AR + AG Options |
| Spectral Range | 400nm - 1100nm |
*Spectrophotometer verified: Guaranteed stable performance across the 400nm-1100nm range for both visual displays and LiDAR sensor applications.
Uncompromising Quality Control:
Our Three-Tier Inspection SOP
Every medical component undergoes a rigorous multi-stage verification process before shipment -- because in diagnostics, there is no acceptable margin for error.
Class 1000 Cleanroom Processing
All silk-printing and assembly are conducted in an ISO-certified Class 1000 environment to eliminate micro-dust contamination for optical diagnostic sensors.
VMS Dimensional Verification
Every medical panel is scanned via Vision Measurement System (VMS). We provide a full measurement report for 100% of batches to ensure ±0.05mm compliance.
Chemical Stability Stress Test
Sample testing with surgical-grade disinfectants (H₂O₂ and high-concentration alcohol) to verify coating durability and adhesion before every shipment.
Trusted by Leading Medical Device Brands
Solving Real-World Diagnostic Challenges
"Balancing Waterproof Sealing with 98% Optical Transparency."
Case Highlight: We provided a customized Step Glass (Multi-level CNC) solution for a global leader's biochemical analyzer. By optimizing the DFM (Design for Manufacturability), we solved the waterproof sealing challenge without sacrificing the extreme clarity required by high-sensitivity optical sensors.
"Why we treat every medical order
as a life-saving component."
"In the medical industry, a 0.1mm error could lead to an instrument failure. As the founder of Winson, I oversee every inspection process because we know -- this isn't just glass; it's the accuracy of a diagnosis."
Start Your Medical Project with Certainty
Consult a Medical Material Expert · Free Technical Feasibility Analysis · NDA Protected
Technical Consultation
Talk to our engineers about material selection, transmittance requirements, and sterilization compatibility. Response within 24 hours.
Consult an ExpertUpload Your Drawings
Send your .CAD, .PDF, or STEP files for a 24-hour DFM (Design for Manufacturability) feasibility review by our engineering team.
Instant NDA Upload
