Precision Silkscreen & Dead-Front Engineering
Industrial-grade optical printing for HMI panels, medical displays, and smart home interfaces -- engineered for zero light leakage and absolute color fidelity across every production run.
Solving the Dead Front Failure.
In B2B industrial displays, "Ghosting"--where icons are visible when inactive--is a design failure. Winson eliminates this through a Triple-Layer Engineering Hedge.
Precision Translucency (5%-15%)
We calibrate ink density against your LED's specific Nit output to ensure a 100% "True Black" state when powered off.
Carbon-Shield™ Optical Barrier
Utilizing high-opacity carbon sub-layers to prevent 99.9% of lateral light leakage and "halo" effects in high-power HMIs.
Substrate-Specific Adhesion
Engineered molecular bonding ensures zero delamination or edge peeling under 100+ cycles of IPA solvent friction.
True Black -- Icons Invisible
Icons Lit -- Zero Halo / Zero Leakage
Interactive
Ink-Light Match Matrix
LED Nit → Recommended Ink Translucency
| LED Brightness | Ink Translucency | Engineering Note |
|---|---|---|
| 200-500 nits | 8%-10% | Standard translucent layer; ideal for indoor panels. |
| 500-1000 nits | 5%-8% | Prevents bleed-through in semi-bright environments. |
| 1000+ nits | 3%-5% + Carbon | High-opacity carbon sub-layer; eliminates halos. |
Eliminating the
Micro-Flaw.

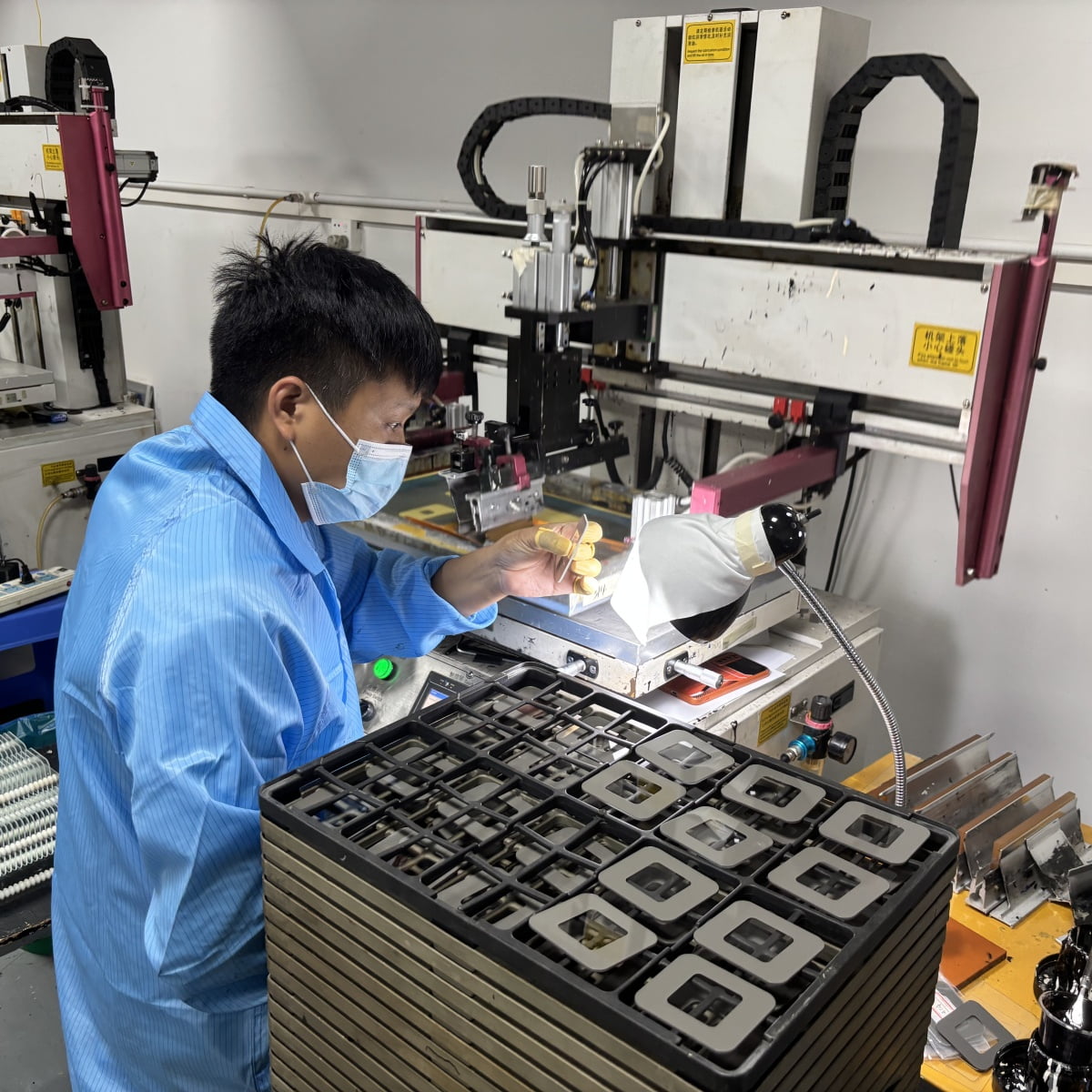

In optical backlighting, a single 5-micron dust particle is not just a blemish--it's a point of light leakage that compromises the entire HMI.
Ionized air curtains neutralize static-cling on glass substrates.
Real-time climate synchronization maintains ink flow behavior.
INDUSTRIAL
VALIDATION MATRIX
BEYOND VISUALS: RIGOROUS RELIABILITY TESTING PER ASTM, ISO & IEC STANDARDS.
Adhesion Integrity
Zero peeling under 3M-610 tape test on high-energy substrates like Sapphire.
Color Consistency
Full spectrophotometer tracking across batches for absolute Pantone/RAL matching.
IPA solvent resistance friction test
Solvent Resistance
No ink degradation under 99% IPA friction test with 500g vertical load.
48H / 72H
Salt Spray Test
Zero ink delamination or substrate corrosion after neutral salt spray exposure.

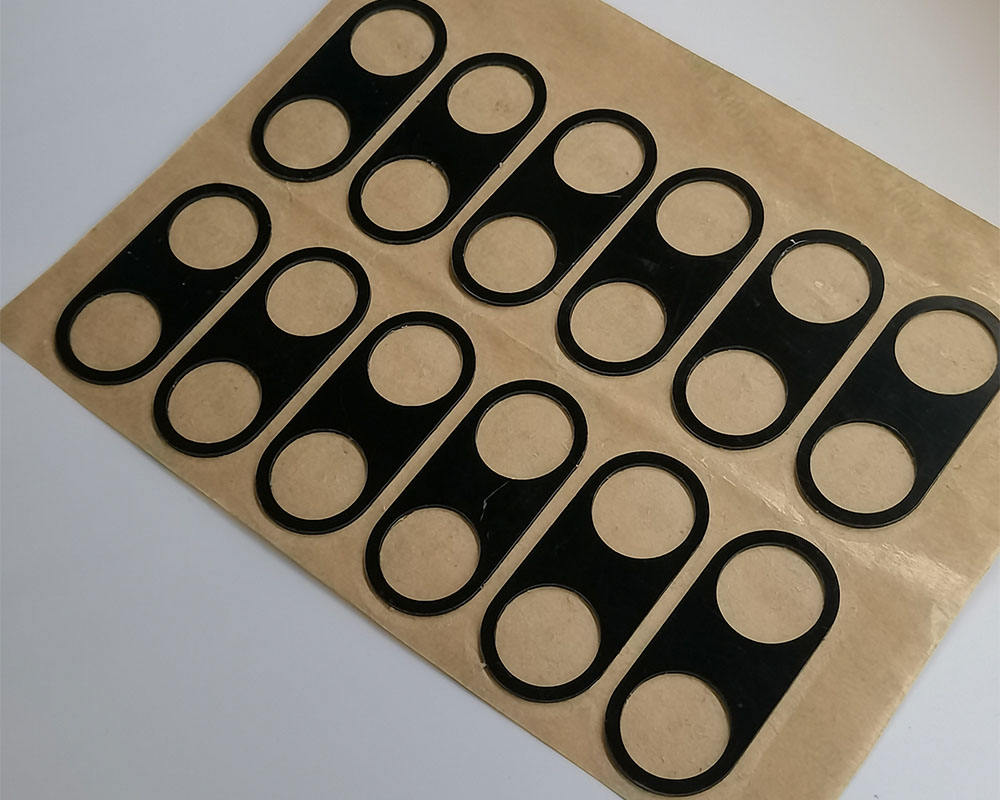

Overlay Precision
Automated camera registration ensures perfect multi-layer iconography overlay.
SOURCING INSIGHT: THE HIDDEN COST OF REWORK
IRIS · FOUNDER & GLOBAL SOURCING ALLY
"In procurement, the biggest hidden cost in silkscreen is never the unit price -- it's the post-assembly rework rate. If edge light leakage or ink bubbles are only discovered during final assembly, the entire cover glass -- or worse, the entire finished unit -- becomes scrap. At Winson, our obsession with yield rate certainty is a supply chain risk mitigation strategy."
99.2%+
First-Pass Yield Rate
Verified across mass production batches
<0.8%
Post-Assembly Rework Rate
Industry avg. 3-5% for non-cleanroom print
0
Catastrophic Batch Failures
Since ISO 9001 cleanroom adoption
IRIS
FOUNDER & GLOBAL SOURCING ALLY @ WINSON OPTICS
● 12 YRS PROCUREMENT · EX-SENIOR BUYER
VALIDATE THE "ZERO-LEAKAGE"
EFFECT ON YOUR HARDWARE
Technical data sheets cannot replicate the visual integrity of a 3-layer optical stack. Request a Dead Front Benchmark Piece calibrated to your specific LED Nit values.
