Winson Optics

Customized Silk Screen Printed Glass Manufacturer

Pixel-perfect printing on tempered, sapphire, or Gorilla Glass -- engineered for smart home panels, industrial HMIs, and medical touch interfaces. From blueprint to certified batch in weeks, not months.

Why Buyers Choose Winson

Silk Screen Done Right.
Every Batch.

Color drift, adhesion failure, and silent suppliers kill production timelines. Here's how we eliminate each risk -- with documented proof.

Spectral analyzer verifying ink color consistency in Winson production line
Pain Point

Batch-to-Batch Color Inconsistency

Suppliers promise Pantone matching but deliver visible color drift across runs -- your QC team rejects the lot.

Winson Solution

Spectral-analyzer-verified ink mixing with locked color profiles. ΔE < 2 across all batches -- documented color reports included with every shipment.

Pain Point

Ink Adhesion Failure in the Field

Prints peel under UV, cleaning agents, or humidity -- triggering costly warranty claims and brand damage.

Winson Solution

UV-cured and high-temp baked ink systems (200°C+). Adhesion tested to DIN EN ISO 2409 cross-cut standard before every shipment.

UV curing and adhesion testing process at Winson Optics
Iris reviewing production milestone reports with a client
Iris, Founder of Winson Optics
Iris -- Chief Auditor
12 yrs procurement · Weekly reports
Pain Point

Opaque Lead Times & Radio Silence

You submit specs and wait -- no milestone updates, no delay alerts, no accountability until it's too late.

Winson Solution

Iris's procurement-mindset model: weekly photo reports at each production stage, proactive delay alerts, and a dedicated account manager aligned to your timezone.

Glass: 15+ days production Plastic: 7-10 days production
Product Gallery

Every Surface, Precisely Printed

From single-color functional markings to multi-layer decorative gradients -- our automated silk screen lines handle it all with sub-0.1mm registration accuracy.

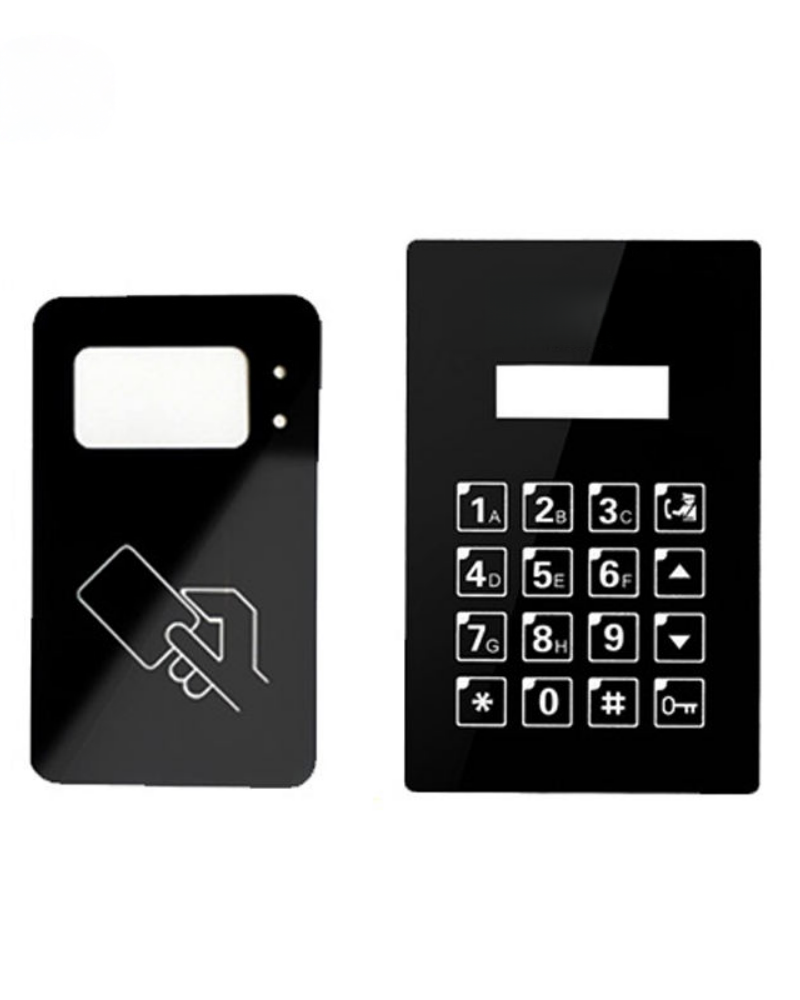

Smart home touch panel with custom silk screen printed interface markings

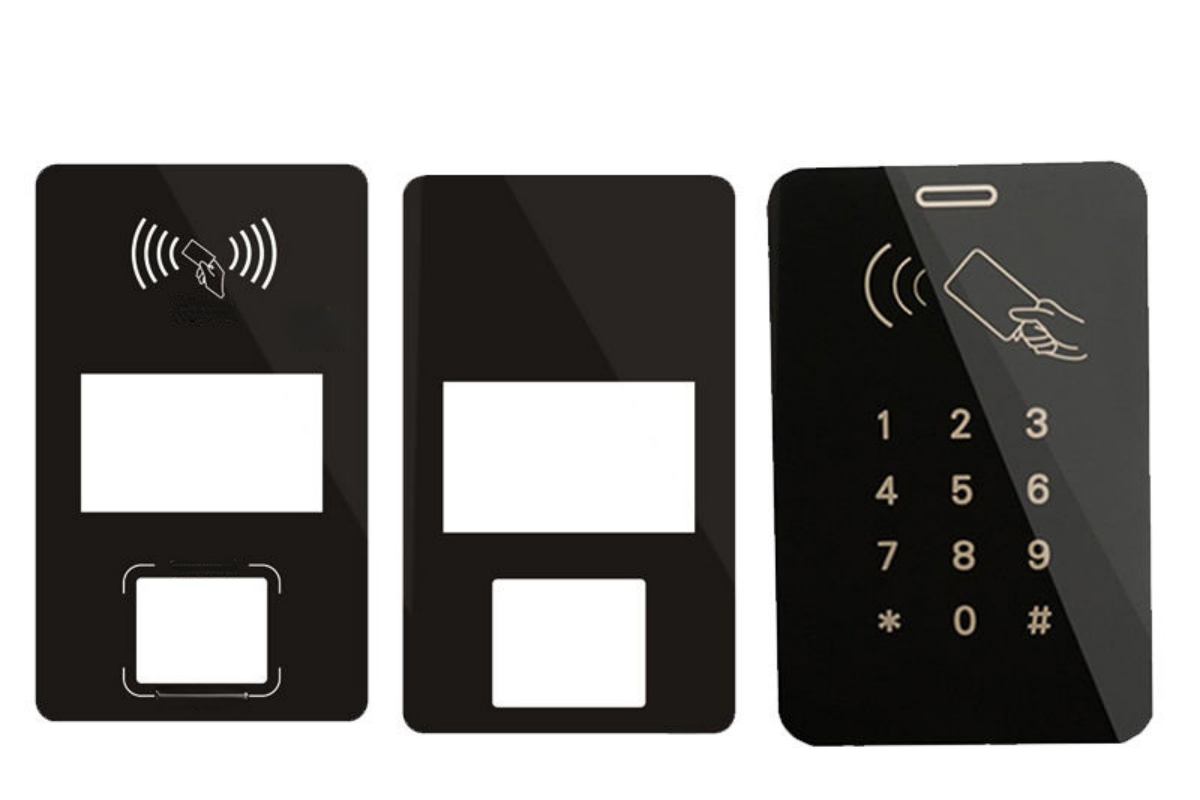

Industrial HMI glass panel with precision silk screen printed control labels

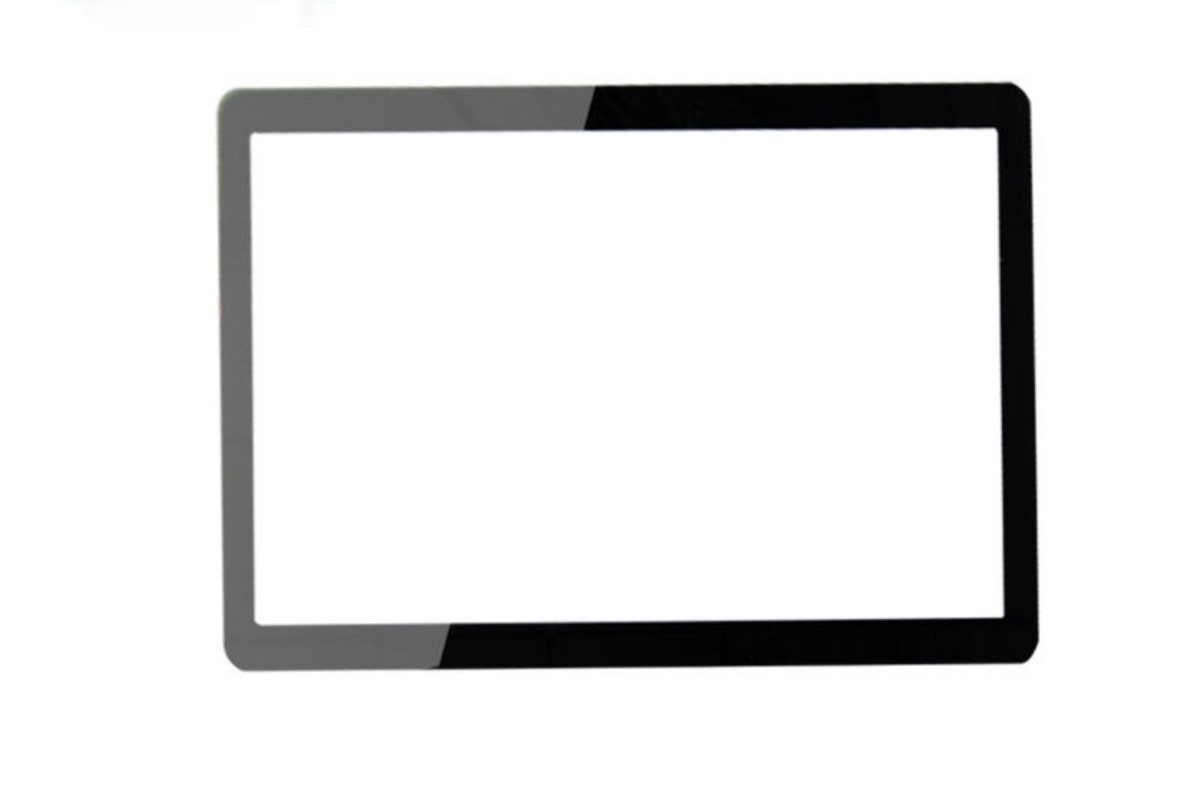

Medical device cover glass with biocompatible ink silk screen printing

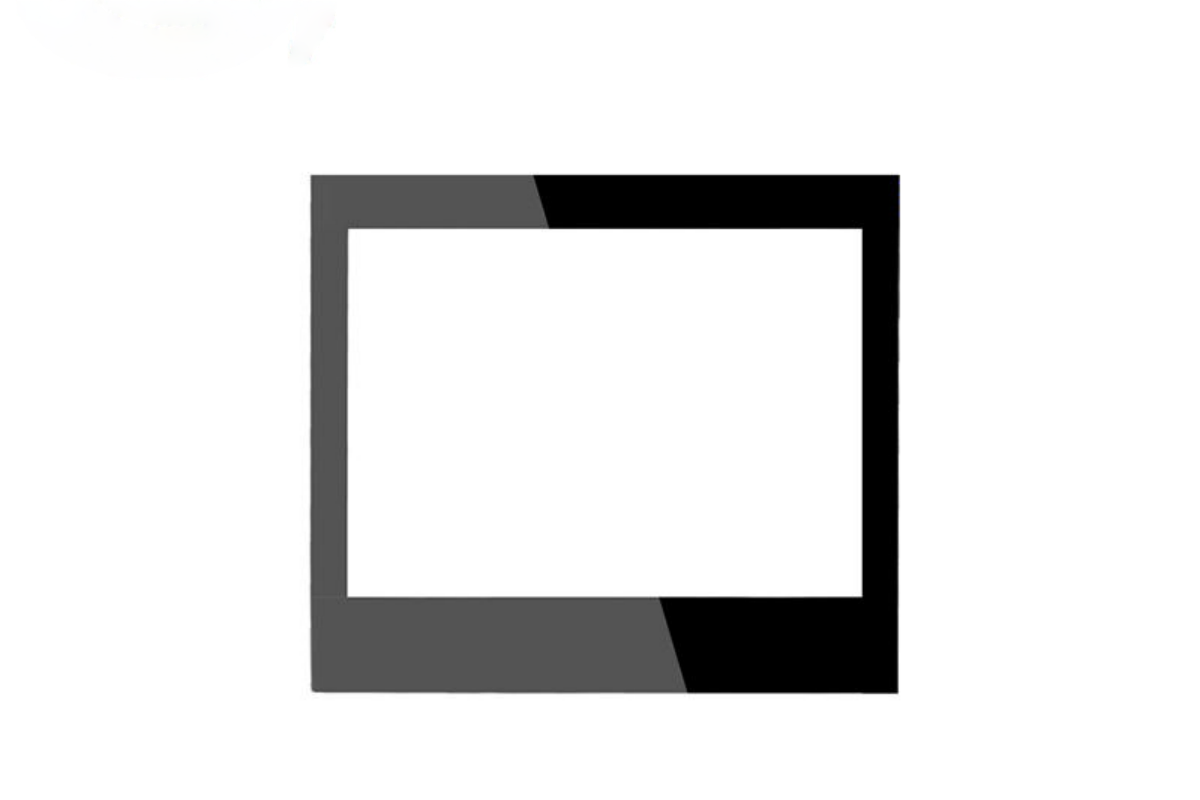

Automotive HUD display glass with gradient silk screen printed border

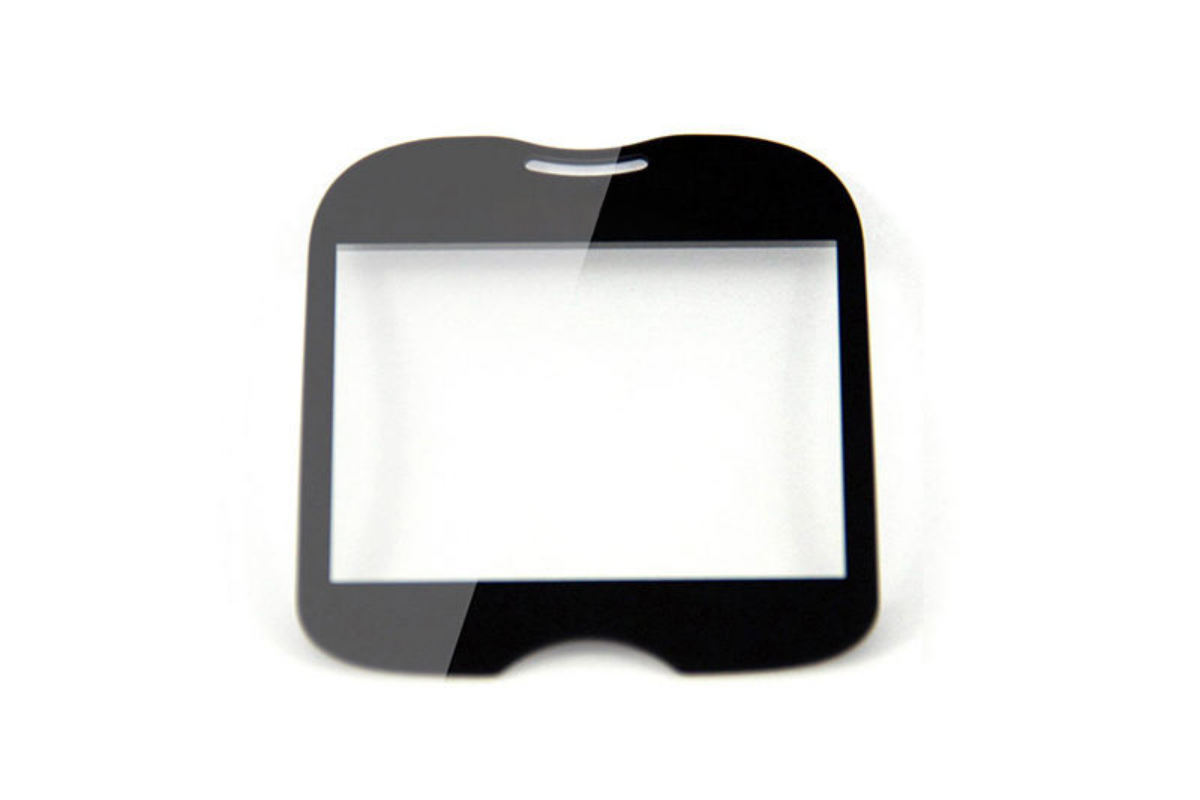

Custom decorative glass panel with multi-color silk screen logo printing
Technical Specifications

Engineering-Grade Parameters

Every specification below is validated through our in-house testing lab and documented in the Certificate of Conformance shipped with every order.

Print Capabilities

Min. Line Width ≥ 0.1 mm
Registration Accuracy ± 0.05 mm
Max. Print Colors Up to 8 layers
Color Accuracy ΔE < 2
Ink Thickness 5-25 μm
Max. Panel Size 1200 × 900 mm

Substrate Materials

Tempered Glass
2-12mm, standard choice for panels
Gorilla Glass
Ion-exchanged, superior scratch resistance
Sapphire Glass
Mohs 9, premium medical & defense
Borosilicate Glass
High thermal resistance, lab instruments
PMMA / Polycarbonate
Lightweight, cost-effective plastic panels

Quality & Compliance

ISO 9001:2015 Certified
Full quality management system
RoHS & REACH Compliant
EU market ready, no restricted substances
100% AOI Inspection
Automated optical inspection, zero-skip policy
Adhesion Test (Cross-Cut)
DIN EN ISO 2409, Grade 0 target
CoC Shipped with Every Order
Certificate of Conformance, test reports included
Cleanroom Production Available
ISO Class 7 cleanroom for medical & optics
Applications

Industries We Serve

Trusted by procurement teams and R&D engineers across four key sectors.

Smart home touch panel with silk screen printed interface
Smart Home

Smart Switch & Touch Panels

Custom-printed glass panels for wall switches, thermostats, and home automation control surfaces.

Tempered Glass Touch-compatible
Medical device display glass with precision silk screen printed markings
Medical

Medical Device Interfaces

Biocompatible inks on sapphire or Gorilla Glass for diagnostic equipment and patient monitoring devices.

Biocompatible ink Cleanroom
Industrial control panel HMI glass with durable silk screen printed labels
Industrial

Industrial HMI & Control

Chemical-resistant, high-contrast printed glass for factory floor HMIs and instrumentation panels.

Chemical resistant IP-rated
Automotive HUD display glass with gradient silk screen printed border frame
Automotive

Automotive HUD & Displays

Gradient border printing and blackout frames for in-vehicle displays, HUD systems, and dashboard panels.

Gradient print UV stable
Buyer FAQ

Questions Procurement Teams Always Ask

Straight answers. No marketing fluff.

What is the minimum order quantity (MOQ) for custom silk screen printed glass?
Our standard MOQ is 50 pieces for prototyping and 500 pieces for production runs. For complex multi-layer prints or specialty substrates (sapphire, Gorilla Glass), we can discuss flexible MOQ arrangements. Contact us with your specs and we'll provide a tailored recommendation.
How do you guarantee color consistency across multiple production runs?
Every color is mixed and verified using our high-precision spectral analyzer against your approved color profile (Pantone or RAL reference). We maintain a locked ink formula card for each client's SKU, ensuring ΔE < 2 across reorders. Color reports are included in every shipment's documentation package.
What documentation do you provide for EU customs and compliance?
Standard shipment documentation includes: Certificate of Conformance (CoC), RoHS Declaration of Conformity, REACH SVHC declaration, ISO 9001 certificate copy, and full inspection reports. For medical device applications, we can additionally provide material traceability records and cleanroom production certificates.
What are your typical lead times for prototypes and production batches?
Prototypes: 7-14 business days from drawing approval. Production runs (500-5,000 pcs): 3-5 weeks depending on complexity and substrate. Rush service is available for critical projects -- discuss with your account manager during the engineering review stage.
Can you print on curved or non-flat glass surfaces?
Yes. We support 2.5D and 3D curved glass printing using conformable screen tooling and UV-pad printing for complex geometries. Please submit your 3D model or curvature radius data during the engineering review -- our team will assess feasibility and recommend the optimal printing method.
