Ultimate Optical Material Guide:
Glass vs. Plastics
Expert insights from a procurement perspective to balance performance, durability, and manufacturing ROI.
Technical Comparison Matrix
Compare material properties, optical performance, lead times, and compliance specs side by side -- so your team can make confident decisions before the first drawing is submitted.
| Substrate / Technology | Surface Hardness | Impact Resistance | Chemical Stability | Transmittance | Best Application | Lead Time | ROI Index |
|---|---|---|---|---|---|---|---|
| Sapphire (Al₂O₃) Single Crystal | Mohs 9 / 2200 Hv | Standard | Exceptional | >92% | Aerospace / Medical Laser | High (15+ days) | Premium |
| Panda Glass Ion-Exchanged | 9H / 700 Hv | High (IK08) | High Grade | 91.8% - 98% | Rugged HMI / POS Control | Standard (15+ days) | Highest ROI |
| Etched AG Glass Anti-Glare Proc. | 7H - 9H | Medium | Superior | 89% - 91% | Outdoor Digital Signage | Standard (15+ days) | Strategic |
| Anti-Shatter Glass Safety Enhanced | 6H - 7H | IK07 Class | High | >91% | Public Terminals / Safety | Standard (15+ days) | Standard |
| Precision Step Custom CNC Edge | Substrate Dep. | N/A | High | >91% | IP68 Waterproof Enclosures | Extended (20+ days) | Specialty |
| PC+PMMA Multi-layer Composite | 4H - 6H | IK10+ Extreme | Limited | ~90% | EV Charger / Handheld Tech | Rapid (7-10 days) | Utility |
| Soda-Lime Glass Chem. Tempered | 6H - 7H | Low (IK05) | Moderate | ~90% | Home Appliances | Standard (15+ days) | Economy |
* Standard engineering data (1.1mm substrate). Lead times apply to mass production orders; prototyping may vary. Custom specifications available on request.
Wison Selection Engine
Beyond material selection. We evaluate structural tolerances, edge geometry, and coating stacks to provide a manufacturing-ready specification.
Please refine variables for technical match.
Engineering Advice for Decision Makers
Avoid "Over-Specification"
Requesting ±0.01mm tolerance when ±0.05mm is sufficient for assembly increases waste rates by up to 30%. Focus high precision only on critical mating surfaces.
Ink Adhesion & Substrate Logic
For a true "Dead Front" effect, the material surface energy is key. Substrate choice directly affects ink curing density and the longevity of the hidden-display effect.
Material ROI Decision Matrix
Select a substrate technology to view detailed DFM standards, batch consistency reports, and implementation case studies.

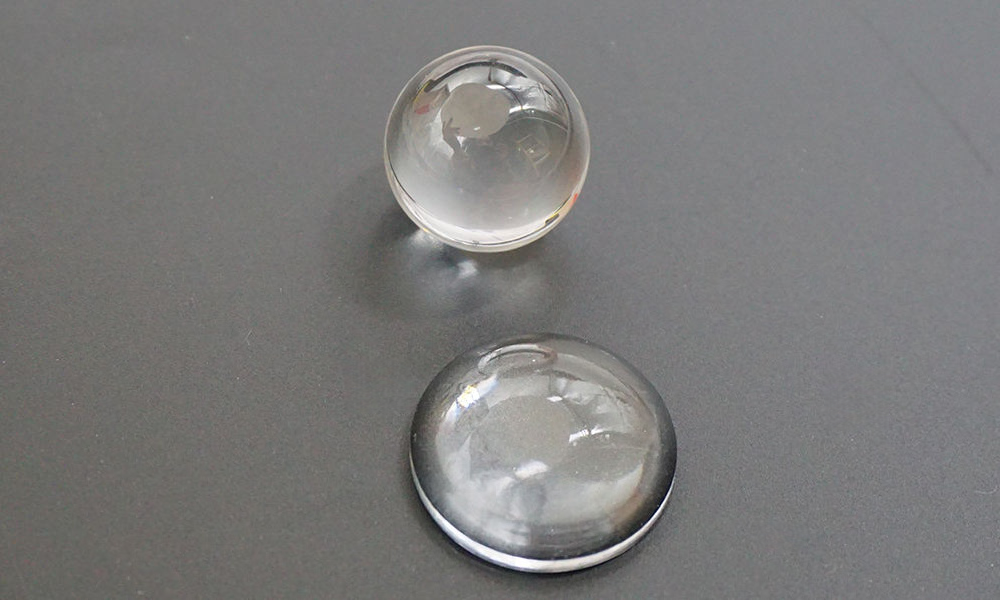

Sapphire
Zero-scratch 9H optics. The ultimate choice for high-energy laser systems and defense displays.
Step Glass
High-precision CNC milling for IP68 seamless sealing in ruggedized industrial HMI environments.

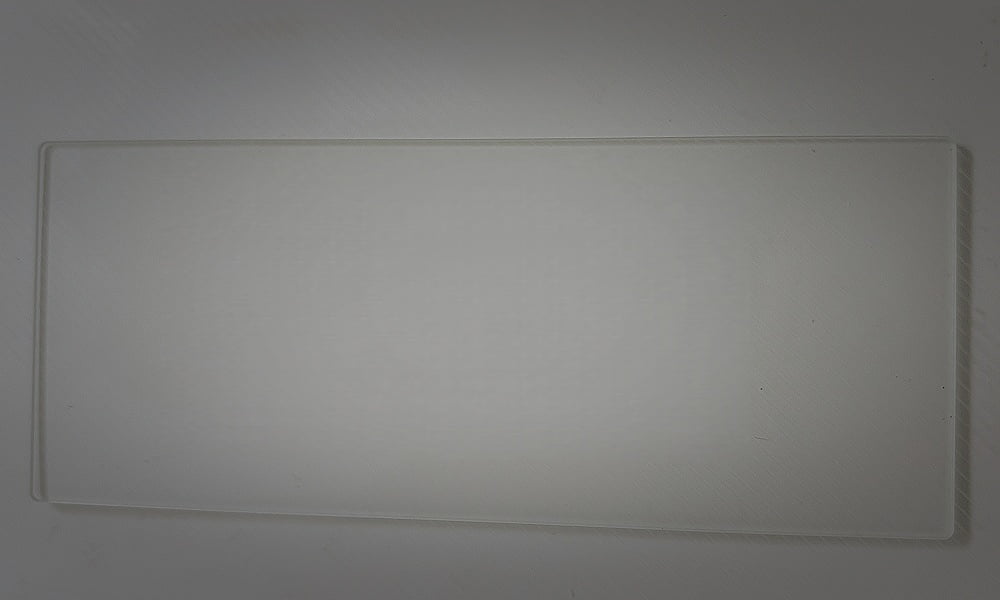

Panda Glass
Top-tier high-alumina glass. Superior ion-exchange depth for mass-market consumer electronics.

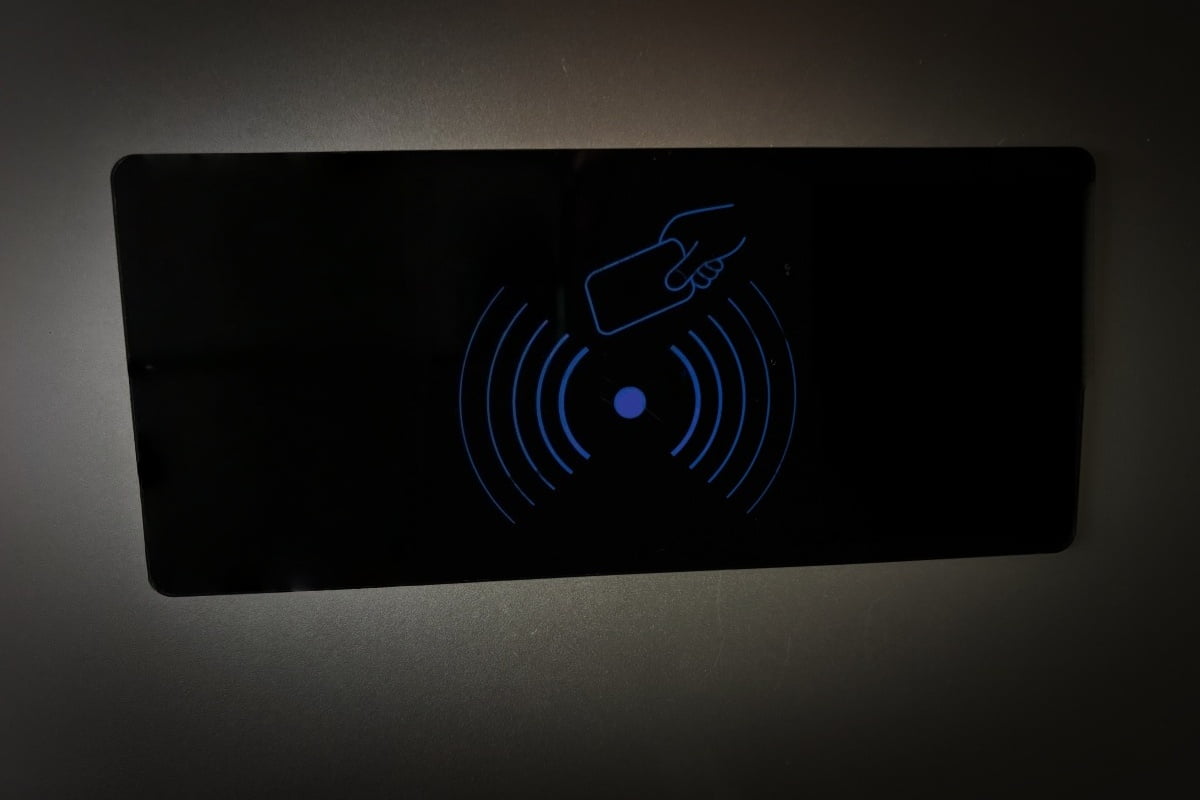

PC+PMMA
Composite multi-layer technology for IK10 unbreakable safety in EV chargers and handhelds.

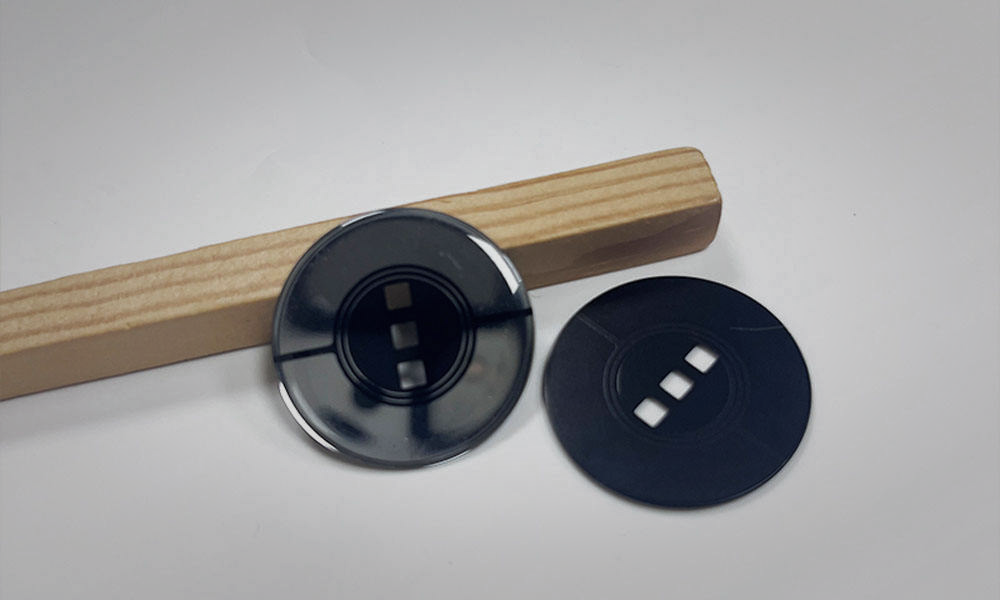

AR/AG/AF
Advanced vacuum-deposited coatings for extreme readability in high-ambient light environments.
The Wison DFM Clinic
"Optimization at the drawing stage saves thousands in production."
The Tolerance Trap Case
By optimizing non-critical tolerances from ±0.01 to ±0.05, we slashed unit costs by 22% while maintaining perfect assembly fit.
Material Efficiency Case
Transitioned an industrial project from imported brands to Wison's Panda Glass. Result: 40% cost saving with zero compromise in IK08 durability.
Free Technical Audit
Our senior engineers will review your drawings for manufacturing logic, DFM compliance, and potential cost-savings -- with a full written report delivered within 24 hours.
Supported formats: CAD · CDR · PDF · STEP
CAD for dimensions & tolerances · CDR for artwork & Pantone colors · PDF for engineering confirmation · STEP for 3D geometry
Technical Datasheets & Compliance
High-Alumina Glass Specs
Refractive index, Thermal expansion & Ion-exchange depth charts.
Optical PC & PMMA Chart
Hardness ratings, Transmittance curves & UV aging data.
Compliance Pack 2024
RoHS, REACH, and ISO 9001:2015 Certifications.
Ready to Define Your Specs?
Skip the guesswork. Let our engineering team validate your material choices for cost and performance.
